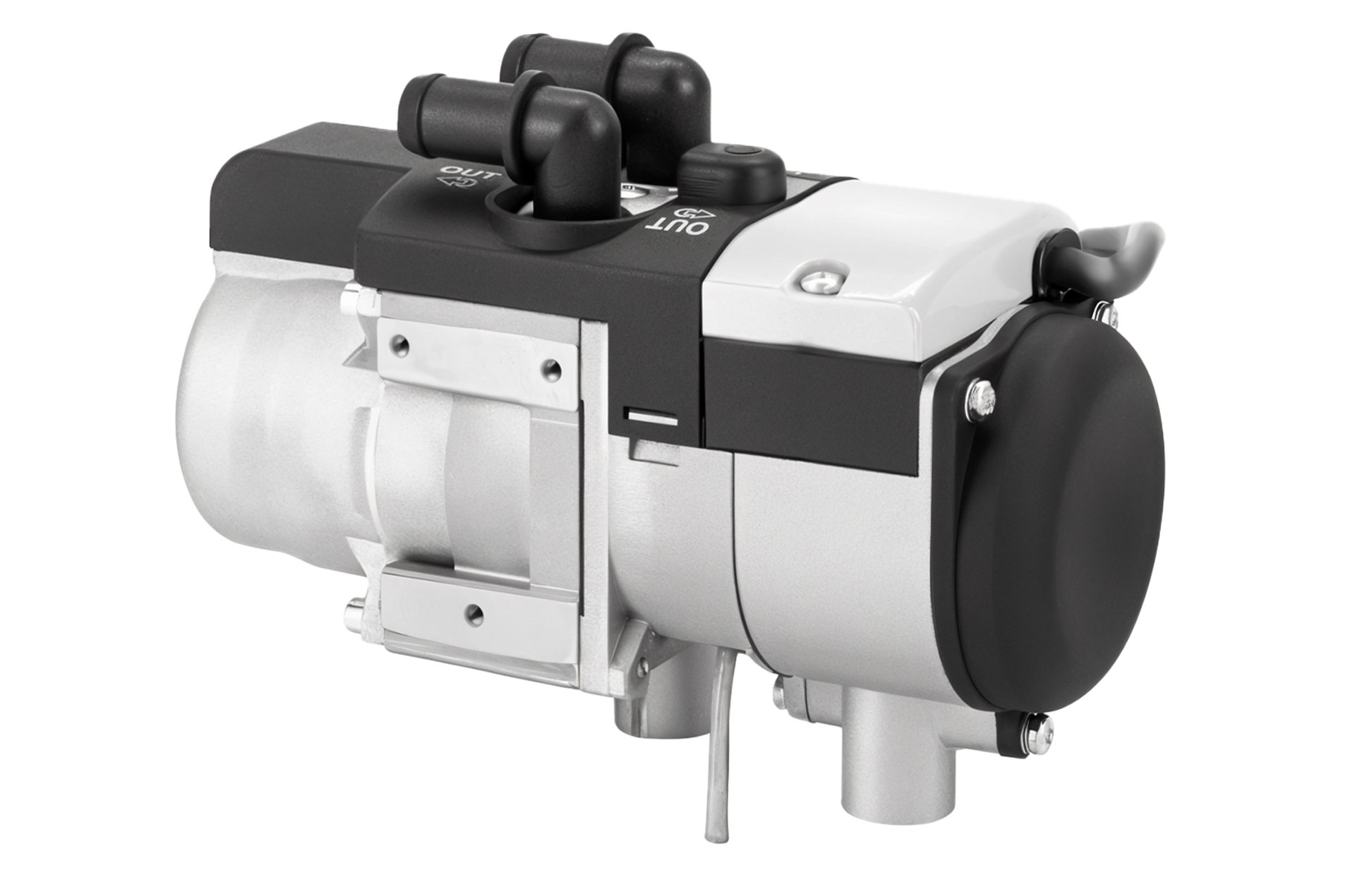

AUTOTERM Flow 5


A medium-sized liquid heater commonly used for engine preheating in passenger cars, vans, motorhomes, and boats with engine capacities up to 4 liters which can also be utilized to build versatile full-stack heating solutions for water and interior heating.
  • R10 & R122 Certified

COMPACT, RELIABLE, EFFICIENT.

Highly Versatile
Highly Versatile

This heater can be utilized for all forms of heating in any vehicle type.

Quiet Operation
Quiet Operation

Equipped with a silent fuel pump, it works very quietly.

High Efficiency
High Efficiency

The heater consumes a maximum of 0.62 liters of diesel per hour.

Extended Warranty
Extended Warranty

If installed by certified AUTOTERM service, the warranty extends to 3 years or 2000 hours.


PERFECT FOR TIGHT SPACES

This heaters small size and thin coolant hoses makes it easy to install it even in super tight compartments.

EASY TO RETROFIT

Each Flow 5 heater standard kit includes all essentials for both new and retrofitting installations.

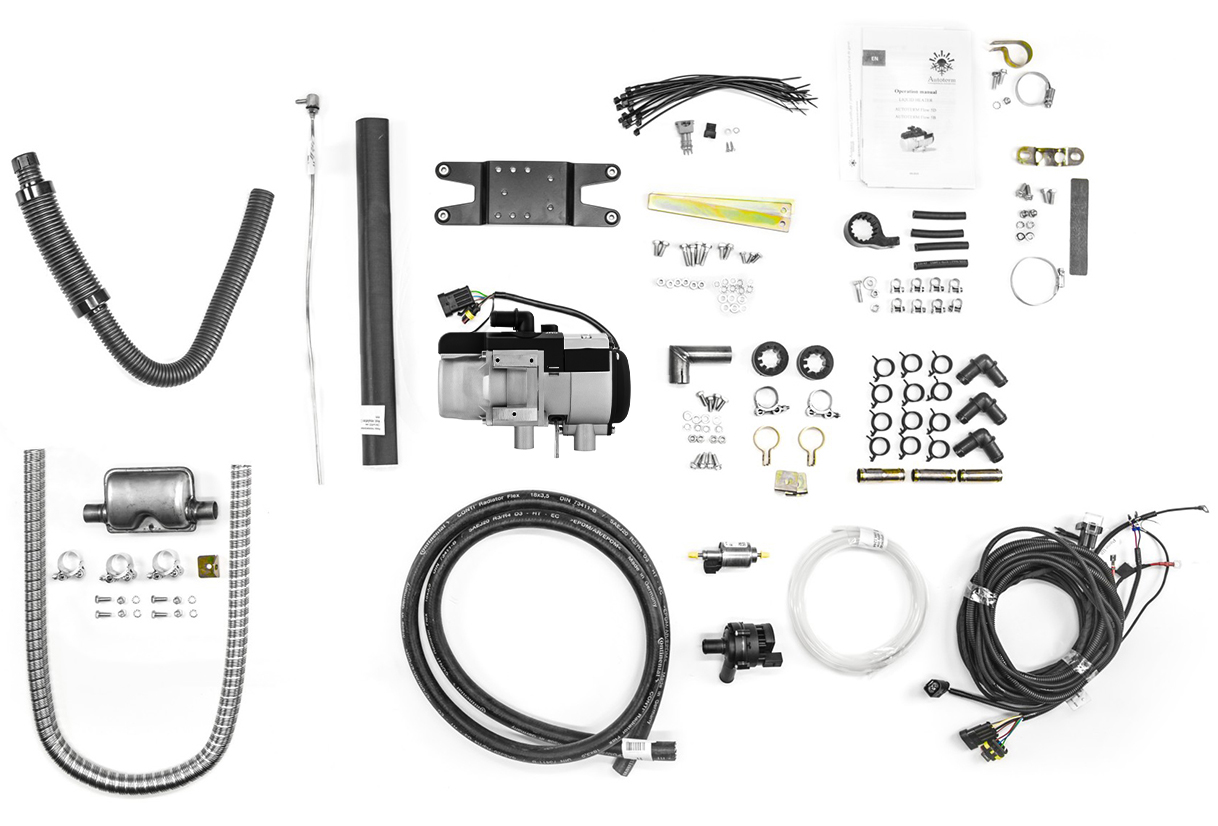

THE STANDARD KIT INCLUDES:

  • Heat insulation (Assy. 909) - 1pce
  • Silent Fuel Pump (Assy. 4995) - 1pce
  • Clamp for Fuel Pump (Assy. AT5-0027-AF0 ) - 1pce
  • Cable Wiring (Assy. 4366) - 1pce
  • Cable Wiring (Assy. 4088) - 1pce
  • Air intake pipe with silencer (Assy. 1125 ) - 1pce
  • Exhaust Pipe (Assy. DE019) - 1m
  • Fuel Stand Pipe (Assy. 2063) - 1pce
  • Mounting bracket (Assy. 3219) - 1pce
  • Heat cover for exhaust pipe (Assy. P3636) - 1pce
  • Nylon fuel line (Assy. P1537) - 5.5m
  • Electric liquid pump Pierburg (Assy. 926) - 1pce
  • Electrical liquid pump (Assy. 2763) - 1pce
  • Coolant hose connector (Assy. P72) - 1pce
  • L-Shaped exhaust pipe adapter (Assy. P5198) - 1pce
  • Coolant hose (Assy. P3485) - 1pc
  • Rectangular silencer with mounting kit (Assy. 3944) - 1pce

COMPATIBLE WITH MULTIPLE CONTROL OPTIONS

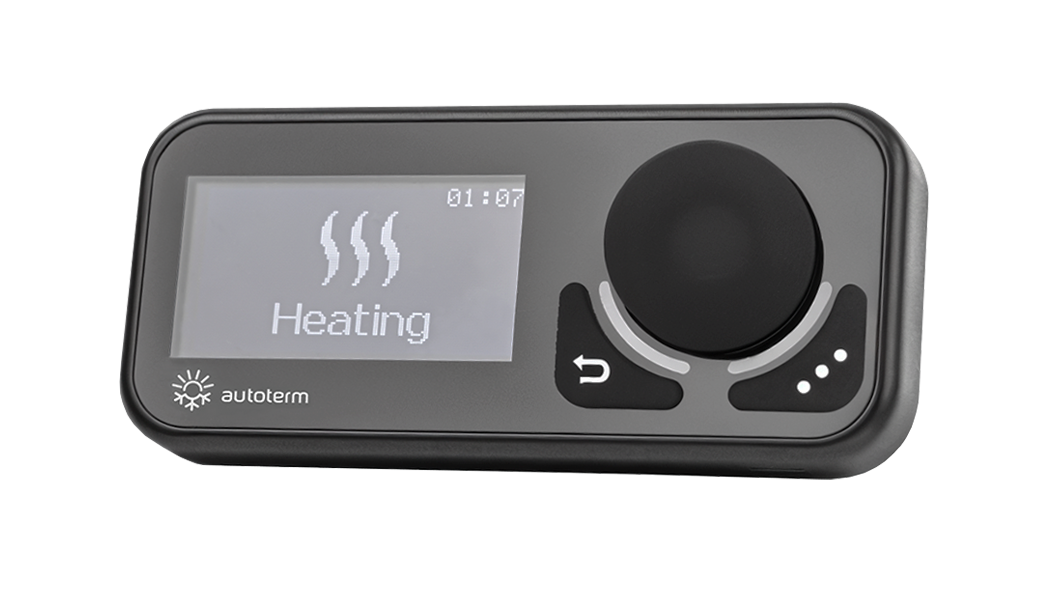

Comfort Control

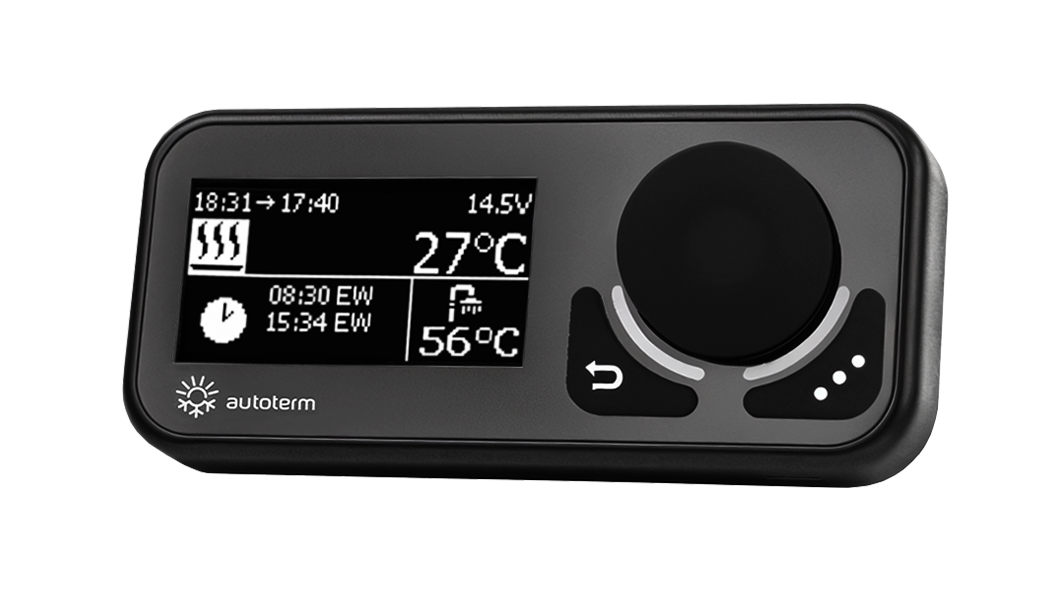

Comfort Boiler Control

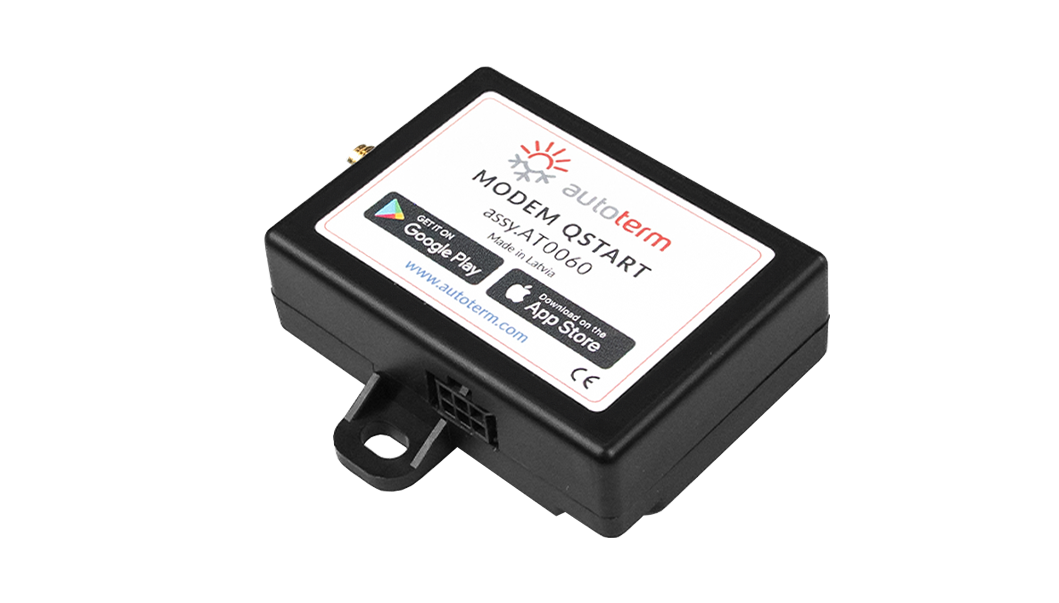

Modem QSTART

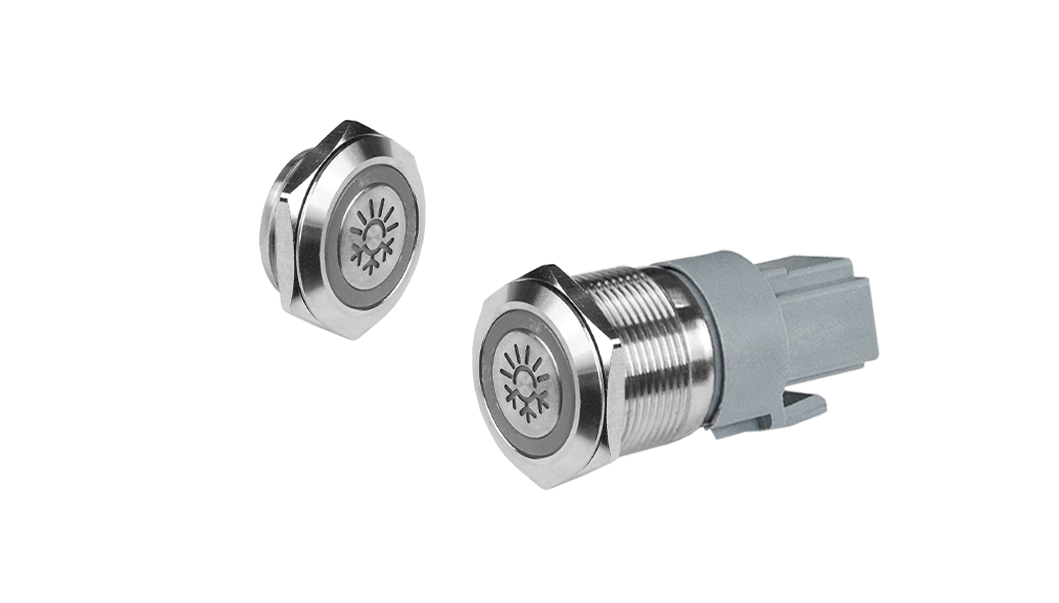

Push Control

MOST POPULAR APPLICATIONS

Passenger Cars

Widely used for engine preheating.

Campervans and Motorhomes

Ideal for building full-stack solutions that heat water and air, as well as pre-heats the engine.

Off-Highway

For enhancing comfort, saving fuel prolonging the engine's lifetime.

Boats and Yachts

Commonly used for heating the engine and interior during the off-season for boats and small yachts.

Trucks

Saves fuel by preheating the engine before driving, as well as utilized for air heating.

CUSTOMIZED COMFORT WITH DIFFERENT WORKMODES

They may change depending on the used Control Panel!

PRE-HEATING MODE
PRE-HEATING MODE

The heater runs until the coolant reaches a set temperature, then shuts off the combustion. Once the coolant cools down, the heating starts again.

THERMOSTAT MODE
THERMOSTAT MODE

The heater runs until the set interior temperature is reached, then shuts off the combustion. Once the temperature drops by a specified number of degrees, the heating restarts. The control panel monitors the temperature.

Technical Specification

Power level
Petrol - EN228
Diesel - EN590
Diesel -EN590
Voltage
12V12V24V
Heating medium
Coolant, antifreeze coolant
Optimal liquid/coolant volume
10 - 12 L
Coolant liquid flow rate at 0 bar pressure in the system
1200 l/h
Coolant liquid flow rate at 0.18 bar pressure in the system
800 l/h
Heating power
5 kW
Power consumption
42 W
Power consumption, in start
122 W (12V) / 120 W (24V)
Max. work altitude (MASL)
1000 m
Fuel consumption
0.70 l/h max
0.62 l/h max
0.62 l/h max
Coolant inlet / outlet diameter
OD - Ø 18 mm
Control mode
Manual, standard remote control, modem
Compatible control panels
OLED Control panel, Comfort Control
Weight of the heater
2.4 kg
Weight of the set
8 kg
Heater dimensions
220x90x136 mm
Package dimensions
55x39x15 cm
