QSTART Modem

Modem QSTART is a Plug & Play device with the ability to use Autoterm Control application on smartphone (available at Google Play and AppStore) to control any AUTOTERM air heater and liquid heaters.

EFFORTLESS CONTROL, NO MATTER THE DISTANCE

Remote Start/Stop
Remote Start/Stop

Control the heater by sending a text message. Modem QSTART uses a micro sim card slot.

Statuss Check
Statuss Check

See the current status of the heater.

Timers
Timers

Start heater with pre-set working duration.

Operation Settings View
Operation Settings View

See the heater's current operation settings.

Temperature Check
Temperature Check

See the current temperature of the compartment

HEATER COMPATIBILITY

AIR Series heaters

Modem Qstart is suitable with AUTOTERM Air 2D, Air 4D, Air 8D, and Air 9D heaters if connected to Simlpe Control / OLED Control / Comfort Control control panels.

With FLOW Series heaters

Modem Qstart is suitable with AUTOTERM Flow 5 with serial numbers that start with "E... and AUTOTERM Flow 14D if connected to OLED Control or Comfort Control control panel.

GOOD TO KNOW!

Extended Wiring
Extended Wiring

Use a 2.6m extension wire (assy.4269) to increase the length from modem QSTART to the control panel. Total length must not exceed 10m.

Connection With Air Heaters
Connection With Air Heaters

To connect Modem QSTART to AUTOTERM Air Series heaters, use a 1.8m control panel wire (assy.2067). Wiring must not exceed 2m.

Control Panel Compability
Control Panel Compability

For modem QSTART to work, the heater must be equipped with a Simple Control, OLED Control, or Comfort Control panel.

International Traveling
International Traveling

Modem QSTART features a micro SIM card slot for communication. Ensure your SIM card is compatible when traveling internationally.

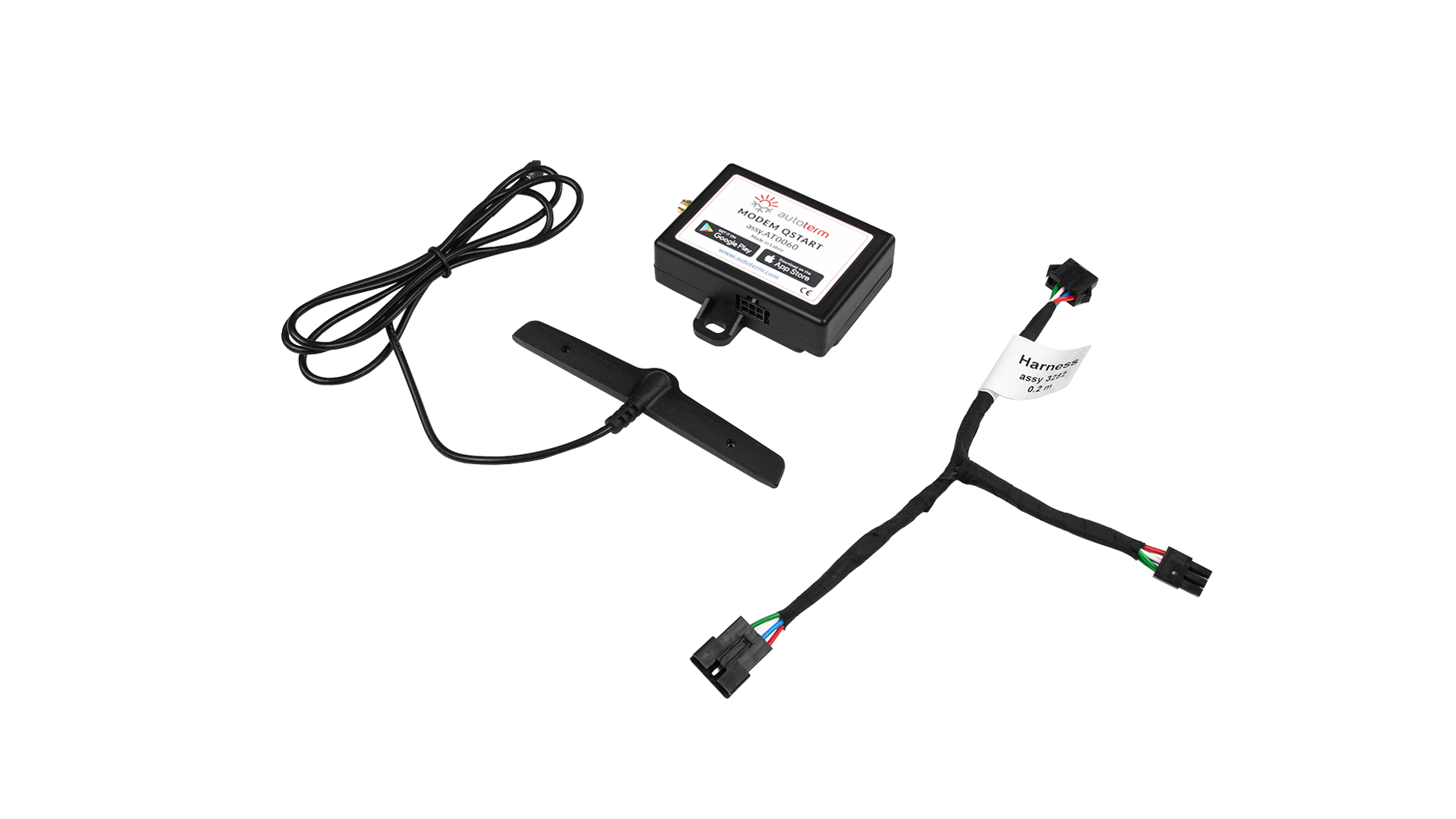

KIT CONTENT


1 x Modem QSTART (LTE version)

1 x Antenna

1 x Harness for Modem Qstart (Assy.3282)

1 x Quick Start Guide (Manual)


Antenna wiring length - 90cm

Modem 3-way cable length - 5x5x5cm

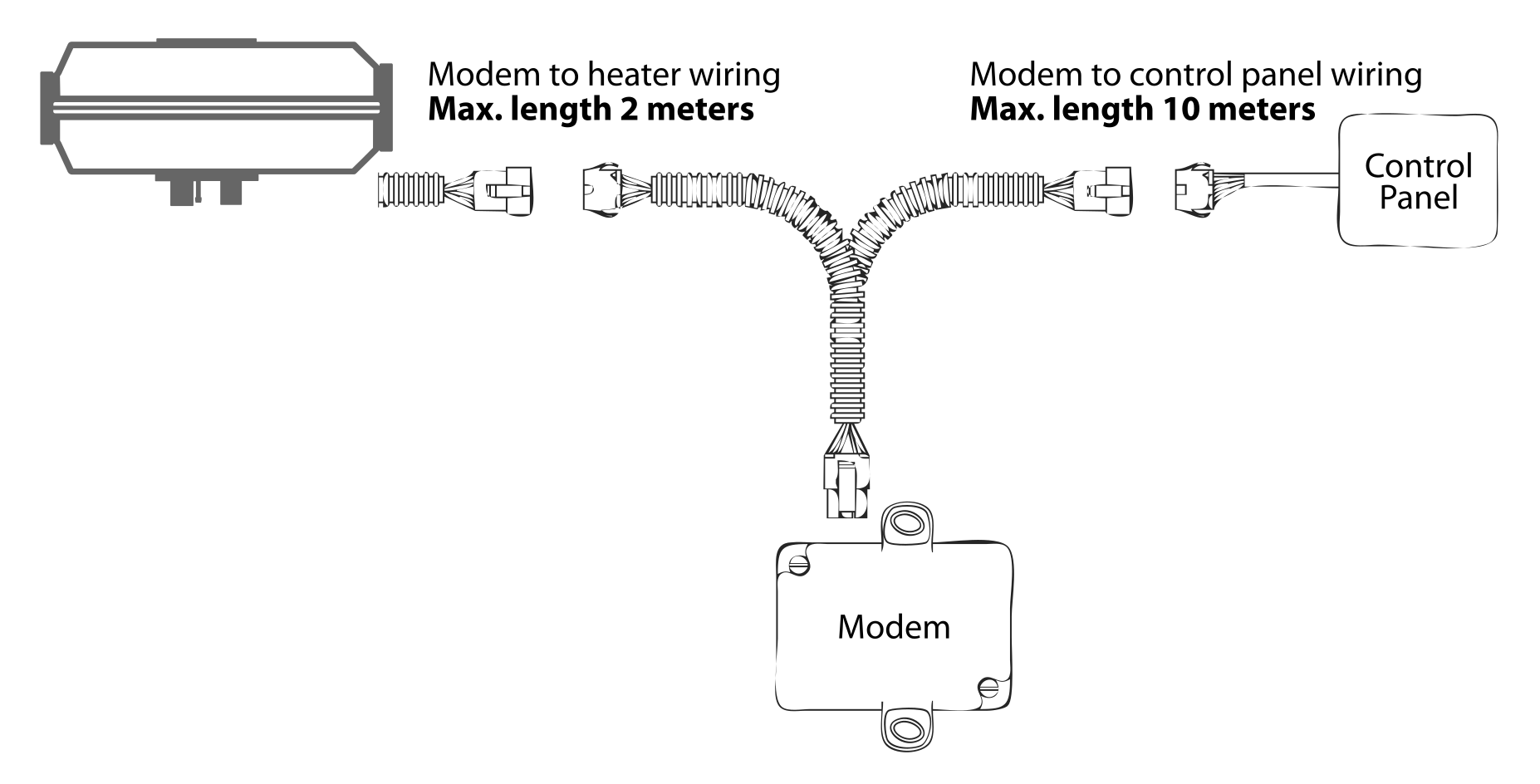

INSTALLATION GIDLINES

TECHNICAL SPECIFICATION

Supported GSM bands:
GSM/GPRS: 900/1800 Мhz
LTE Band
Up-link Band (MHz) Down-link Band (MHz
Band Width (MHz
Duplex Spacing (MHz)
Band Gap (MHz)
LTE Band 1
1920-1980
2110-2170
60
190
130
LTE Band 3
1710-1785
1805-1880
75
95
20
LTE Band 5
824-849
869-894
25
45
20
LTE Band 7
2500-2570
2620-2690
70
120
50
LTE Band 8
880-915
925-960
35
45
10
LTE Band 20
832-862
791-82130 -41
71
LTE Band 28
703-748
758-80345
55
10
Modem Qstart is suitable for the following AUTOTERM Air heaters:
AUTOTERM Air 2D if connected to Simlpe Control / OLED Control / Comfort Control control panel.
AUTOTERM Air 4D if connected to Simlpe Control / OLED Control/ Comfort Control control panel.
AUTOTERM Air 8D if connected to Simlpe Control / OLED Control/ Comfort Control control panel.
AUTOTERM Air 8D if connected to Simlpe Control / OLED Control/ Comfort Control control panel.
Modem Qstart is suitable for the following AUTOTERM Liquid heaters:
AUTOTERM Flow 5 (Diesel/Petrol) with serial numbers that start with "E...." if connected to OLED Control or Comfort Control control panel.
AUTOTERM Flow 14D if connected to OLED Control or Comfort Control control panel.


To connect QSTART modem to liquid heater AUTOTERM Flow 14D, necessary additionally order Modem harness-adapter assy.3814
