Comfort Boiler Control Panel
This control panel provides intuitive operation for both Air and Flow Series heaters paired with all AUTOTERM combiBOIL models. It offers multiple operating modes, advanced timers, multilingual support, and built-in frost protection, making it the perfect solution for managing both air and water temperatures with ease.
Note! The regular Comfort Control Panels cannot be upgraded to match Comfort Boiler Control functions.
DESIGNED TO ELEVATE THE EXPERIENCE
Intuitive user interface
Easily navigate and control your heater with a user-friendly interface designed for simplicity and convenience. Perfect for seamless operation, even on the go!
Integrated digital temperature sensor
The digital temperature sensor offers accurate, real-time monitoring, ensuring your heater maintains the perfect temperature for maximum efficiency.
LED status display
Get instant feedback on your heater's performance with the bright and clear LED screen.
Thermostat function
Maintain precise temperature control with the thermostat function, ensuring consistent comfort and energy efficiency.
Multiple heating modes
Customize comfort with multiple heating modes, tailored to suit various needs and conditions.
Vehicle battery safety
Protects vehicle’s battery with a built-in safety feature that prevents excessive drain during heater operation, ensuring reliable starts every time.
Maintenance reminder
The heater maintenance reminder helps users stay on top of servicing, alerting them when it’s time for maintenance to maintain optimal efficiency and extend the heater’s lifespan.
Multiple languages
This panel supports multiple languages, including EN, NL, DE, PL, ES, IT, FR, CZ, SE, NO, and FI, making it easy to use for a wide range of users across different regions.
Water Heating
The panel displays real-time water temperature and allows adjustment of the target temperature between 50°C and 75°C.
Frost Protection
When the water temperature drops to 2°C, the heater will automatically heat the water to +15°C and Air to +7°C, protecting the boiler from freezing.
Overheat Protection
Turning off the heating when the water temperature reaches 78°C.
Adjustable Hysteresis
Water heating hysteresis is adjustable 5-20°C from the target temperature.
COMPATIBILITY

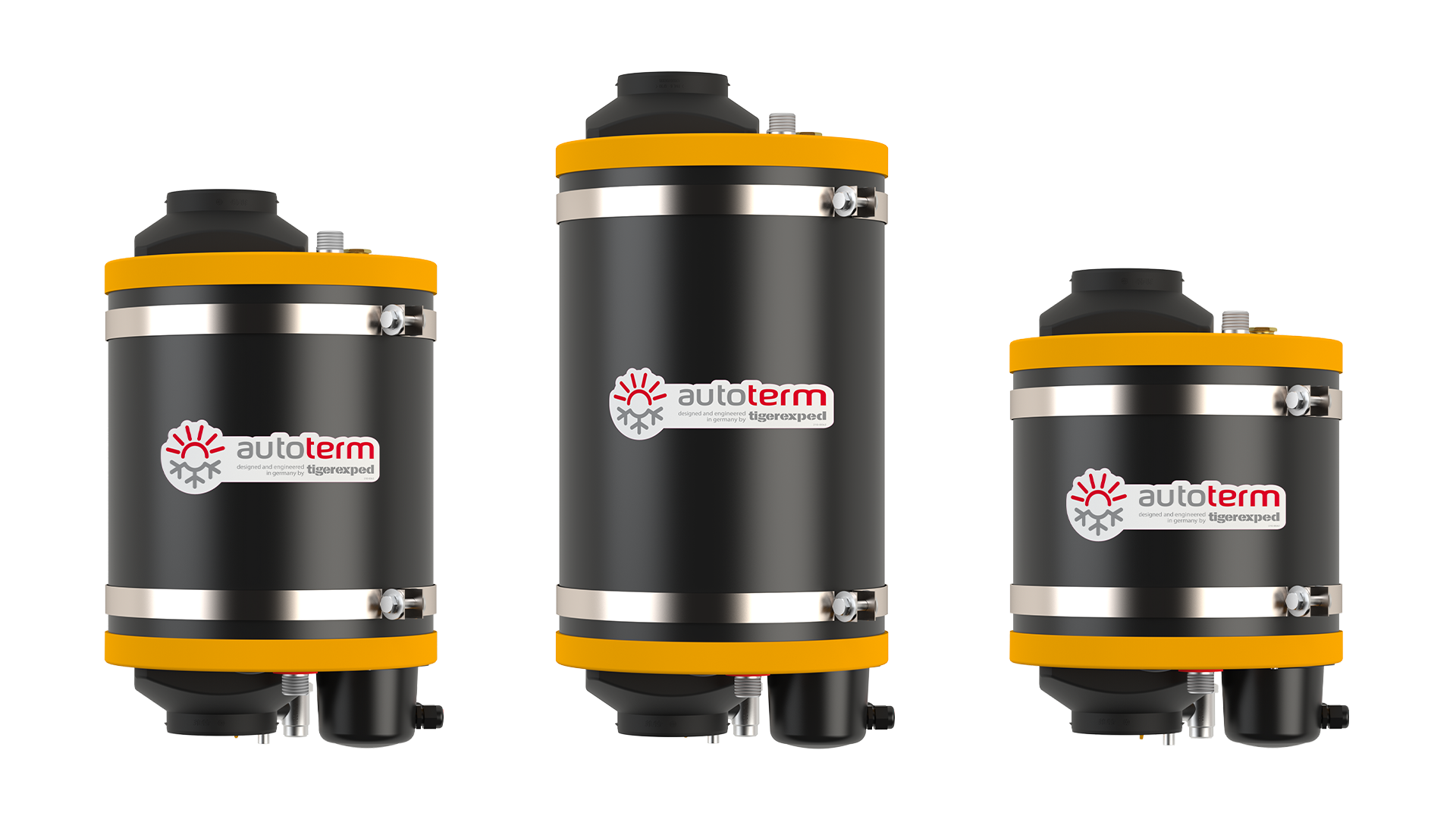

combiBOIL Boilers
The Comfort Boiler Control provides complete management of all combiBOIL systems, whether paired with Air or Flow heaters or operating independently on electricity.
AIR Series heaters
Comfort Boiler Control allows to set multiple workmodes and advanced timers on all AUTOTERM Air Series heaters.
FLOW Series heaters
Comfort Boiler Control enables advanced timers and multiple operating modes for Flow Series heaters
TEMPERATURE MODE
The heater will maintain a set temperature by reducing the heating power, without shutting off the combustion process.
PRE-HEATING MODE
The heater runs until the coolant reaches a set temperature, then shuts off the combustion process. Heating resumes when the coolant temperature drops.
POWER MODE
The heater will operate constantly at a set power level.
THERMOSTAT MODE
The heater runs until the set temperature is reached, then shuts off and restarts heating when the temperature drops.
HEAT + VENTILATION
The heater runs until the temperature reaches 1°C above the set point, then shuts off and ventilates until it drops 5°C below before resuming to heat.
THERMOSTAT MODE
The heater runs until the set temperature is reached, then shuts off and restarts heating when the temperature drops.
Push Control
Comfort Control pairs with AUTOTERM Push Control to provide dual control for a single heater system. Note that a Push Module Wire (assy. AT4-0014-AF0) is necessary to connect them!
SCHEDULED COMFORT WITH MULTIPLE TIMERS
Effortlessly manage your heating schedule with our intuitive Comfort Control Panel timers. Designed for maximum flexibility and convenience, the timer system lets you customize your heating needs with precision.
Up to 3 Timers:
Schedule up to three independent timers to match your daily routine.
Heating Mode Options:
Choose a specific heating mode for each timer to suit your preferences.
Continuous Functionality:
Once set, a timer remains active continuously until it's disabled, so you never have to worry about resetting schedules.
Technical Specification
Temperature sensor |
| |
Timers |
| |
Status display |
| |
Wiring compatibility |
| |
AUTOTERM heater compatibility |
| |
AUTOTERM combiBOIL compatibility | All 7l, 9l, and 12l boiler versions | |
Display dimensions (mm) |
| |
Control panel dimensions (mm) |
|
