Push Control Panel

The AUTOTERM Push Control is a compact and user-friendly device designed for operating AUTOTERM heaters with various operation modes and features, depending on the specific heater model. It comes together with a control module and wire to connect to the heater.

SEAMLESS AND SIMPLE HEATER MANAGEMENT

Easy to use

Browse through heating modes with simple clicks!

Waterproof

Featuring an IP67-grade specification and a Stainless Steel body, it is waterproof and durable even in the harshest weather conditions.

LED status display

Get instant feedback on your heater's performance with the bright and clear LED light.

Multiple heating modes

Customize comfort with multiple heating modes, tailored to suit various needs and conditions.

HEATER COMPATIBILITY

With AIR Series heaters

Comfort Control allows to set multiple workmodes and advanced timers on all AUTOTERM Air Series heaters.

With FLOW Series heaters

Comfort Control enables advanced timers and multiple operating modes for Flow Series heaters

POWER MODE

The heater will operate constantly at a set power level.

PRE-HEATING MODE

The heater runs until the coolant reaches a set temperature, then shuts off the combustion process. Heating resumes when the coolant temperature drops.

TEMPERATURE MODE

The heater will maintain a set temperature by reducing the heating power, without shutting off the combustion process. (WORKS ONLY WITH AN ADDED TEMPERATURE SENSOR)

HEAT + VENTILATION

The heater runs until the temperature reaches 1°C above the set point, then shuts off and ventilates until it drops 5°C below before resuming to heat.

CONTROL PANEL COMPATIBILITY

Comfort Control

Push Control pairs with AUTOTERM Comfort Control to provide dual control for a single heater system. Note that a Push Module Wire (assy. AT4-0014-AF0) is necessary to connect them!

Comfort Boiler Control

Push Control pairs with AUTOTERM Comfort Boiler Control to provide dual control for a single heater system. Note that a Push Module Wire (assy. AT4-0014-AF0) is necessary to connect them!

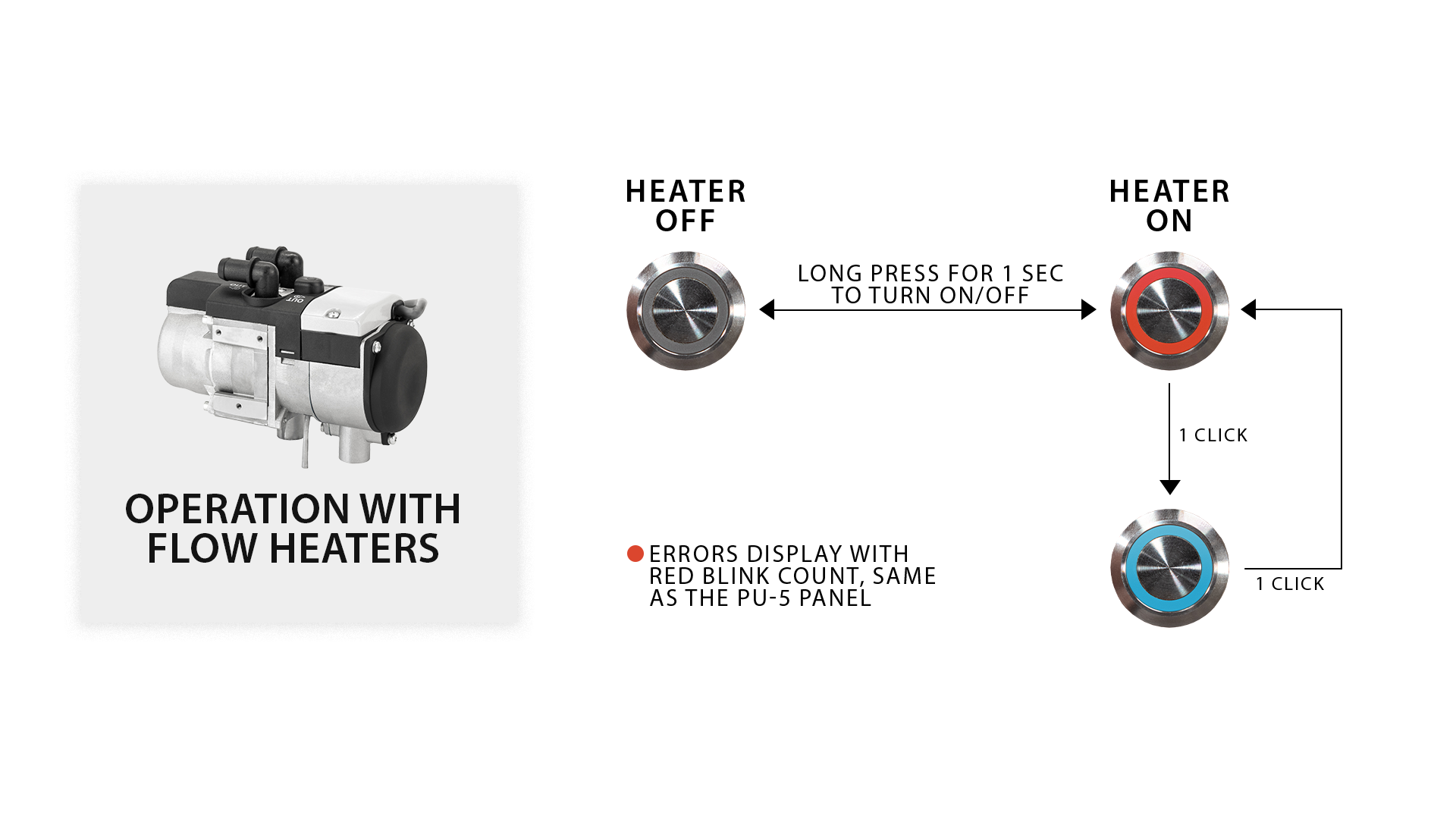

CLICK TO OPERATE!

AVAILABLE IN TWO STYLES!

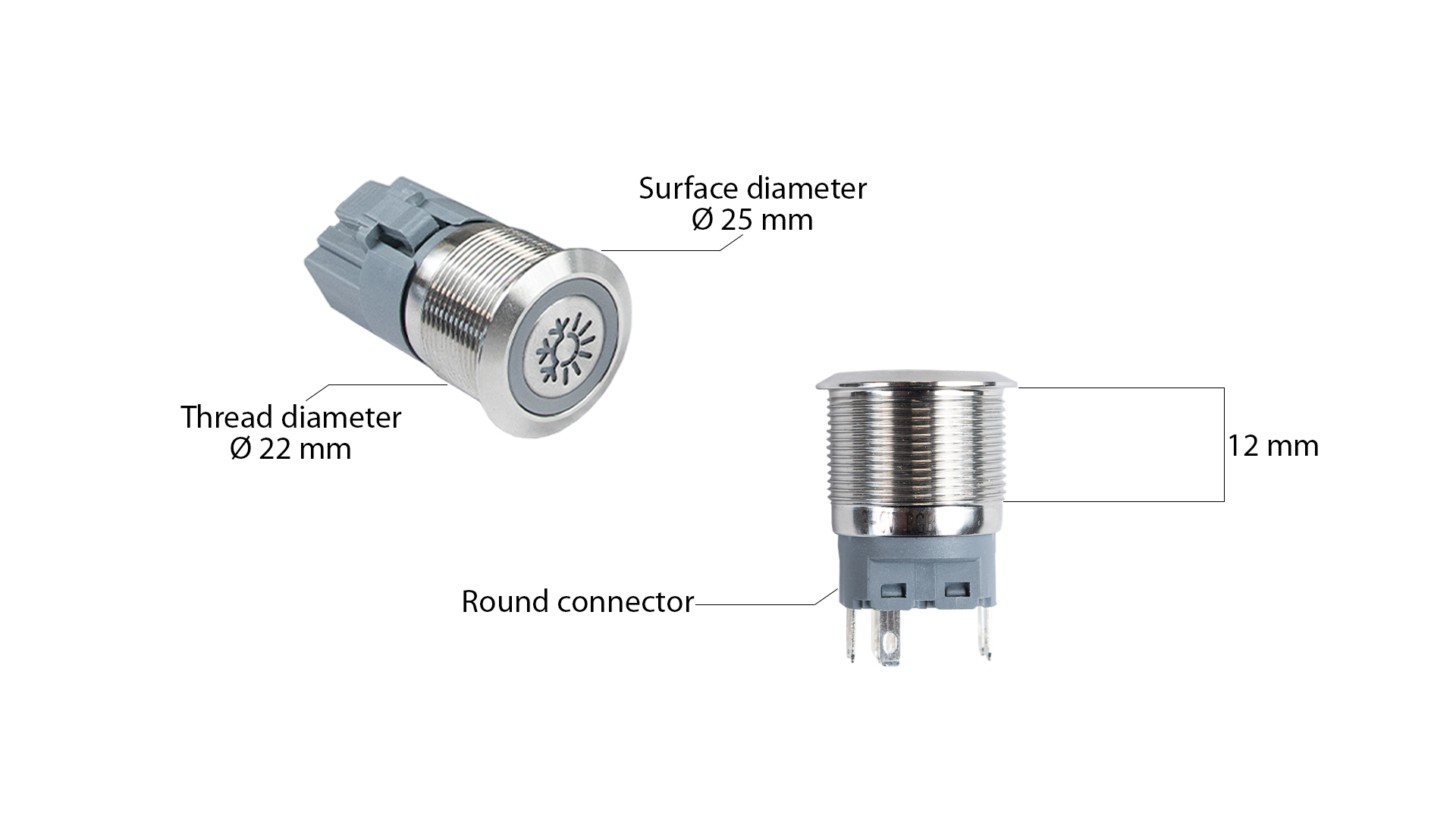

Push Control S

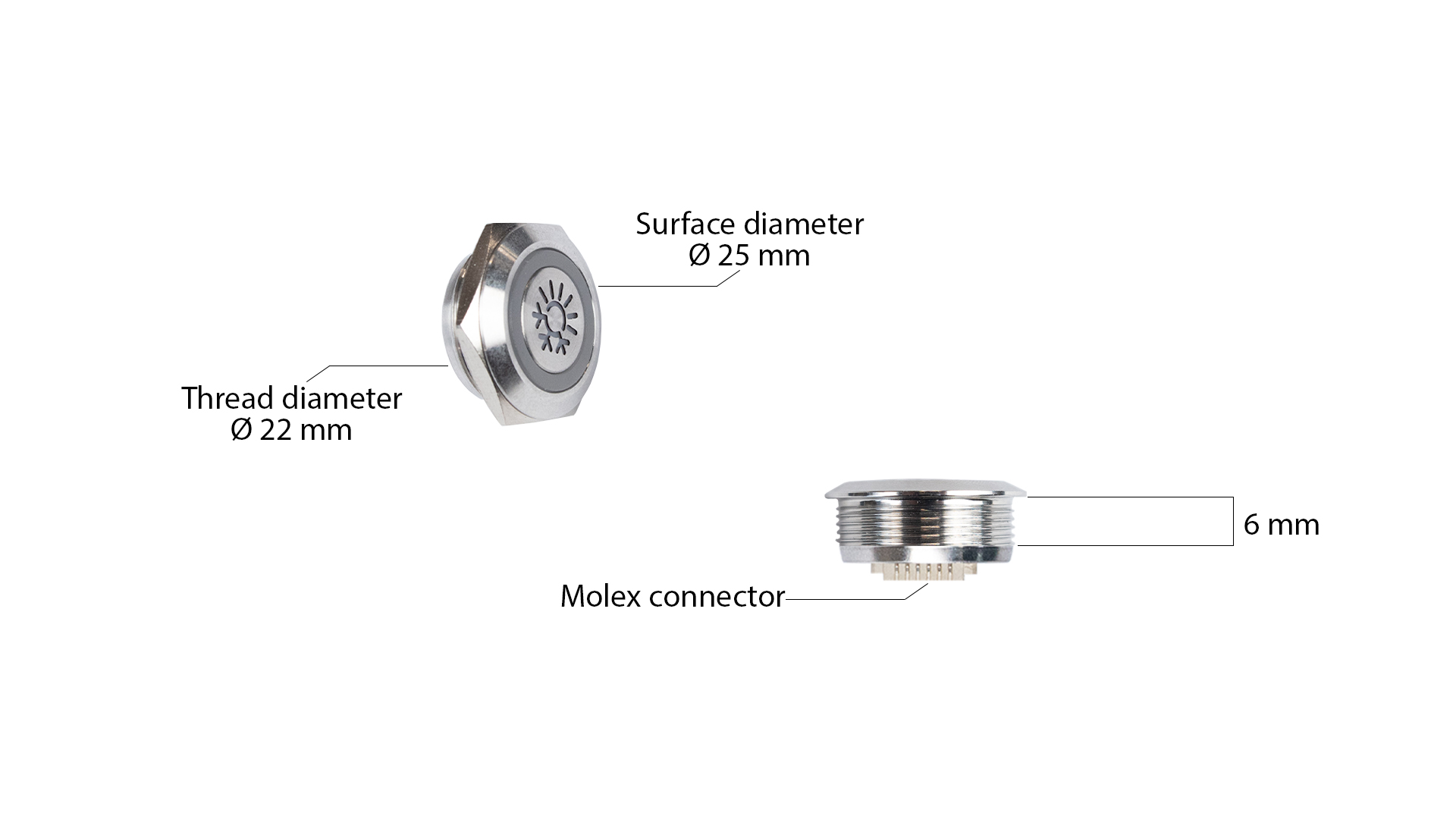

Push Control L

HOW IT LOOKS IN REAL-LIFE?

Features, compatibility, and much more!

Technical Specification

Heating modes for Air heaters

POWER MODE:

The default heating mode for the Push Control button.

TEMPERATURE MODE (Works only with a connected external temperature sensor):

Designed to heat the space to the required temperature;
Heat output decreases as the difference between the desired temperature and the temperature in the space decreases.

* The temperature mode for Air 2D 12/24V and 4D 12/24V heaters in the 6355, 6350, 6260, and 6265 series versions have a new algorithm. In this mode, the heater acts normally by lowering power when it gets near the set temperature. However, if it goes past the temperature setpoint, the heater will turn off and wait until the temperature drops by 3 degrees below the temperature setpoint before starting again.

Heating modes for Liquid heaters

PRE-HEATING MODE:

The heater will operate till the certain coolant temperature is reached then shuts off the combustion process. After the temperature of the coolant drops heating will start again.

Temperature sensor

Custom calibrated digital sensor with +/- 1.5 degree offset.

Status display

MIN= Blue
LOW= Purple
MED= Green
High= Yellow
MAX= RED
Blinking RED - error code
Blinking Red/Blue - switching off

Wiring compatibility

assy.2067 - Wiring for control panel (1.8 m)
assy.2324 - Wiring for control panel (5.0 m)
assy.3298 - Wiring for control panel (7.0 m)
assy.4269 - Extension wiring for control panel (2.6 m)
assy.4366 - Cable wiring for AUTOTERM Flow 5D (12V)
assy.4044 - Cable wiring for AUTOTERM Flow 5D / 5B (12V)
assy.4394 - AUTOTERM Flow 14D wiring harness for control panel (1.8 m)

Maximum allowed cable wiring length with Comfort Control - 10 m

AUTOTERM heater compatibility

AUTOTERM air heaters:

AUTOTERM Air 2D
AUTOTERM Air 4D
AUTOTERM Air 8D
AUTOTERM Air 9D

AUTOTERM liquid heaters:

AUTOTERM Flow 5D / 5B
AUTOTERM Flow 14D

(for verification of compatibility for older heaters sold by AUTOTERM, please contact us at service@autoterm.com)

Button surface diameter (mm)

Button thread diameter (mm)
