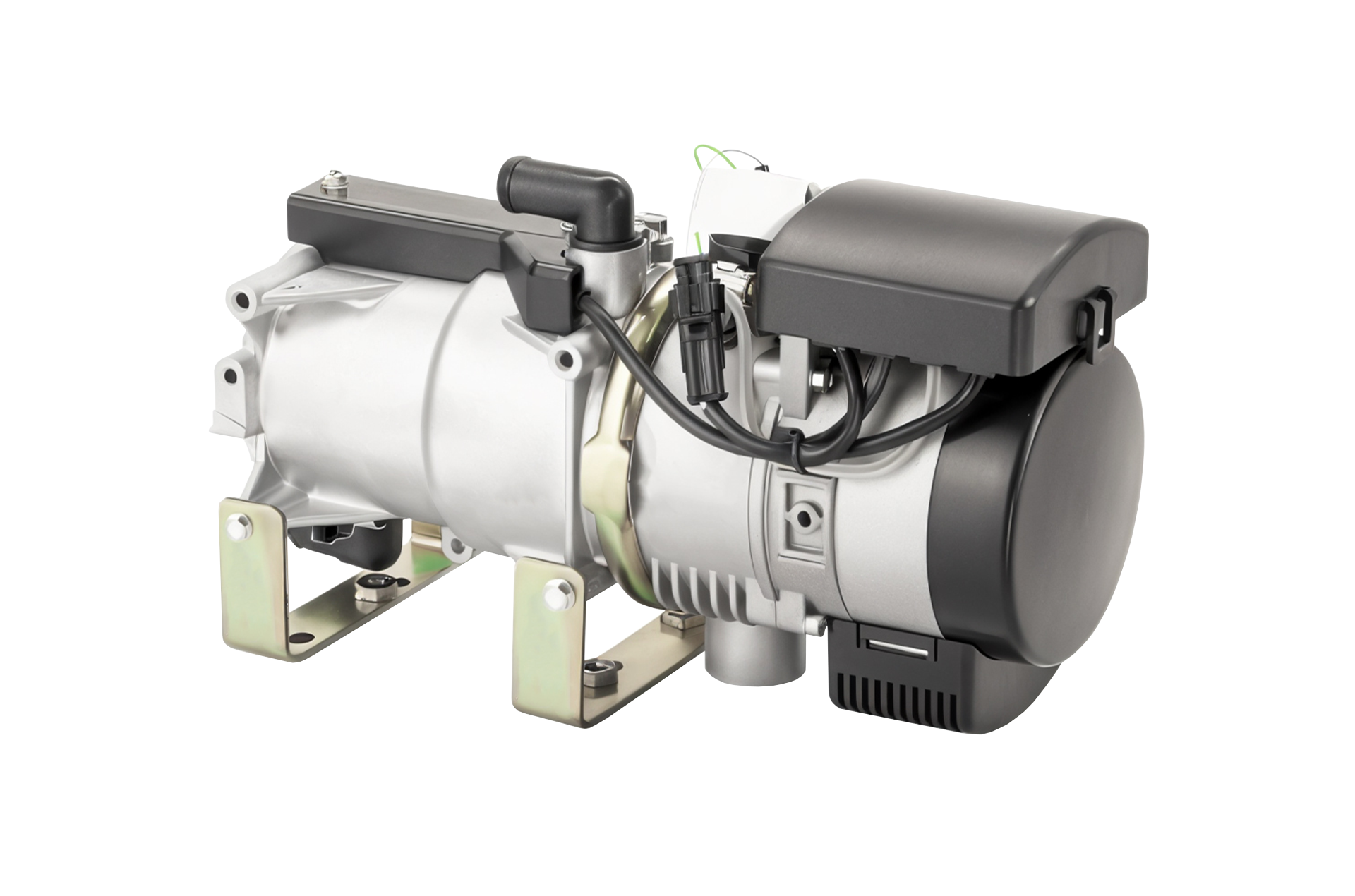

AUTOTERM Flow 14D


A large liquid heater commonly used for engine preheating in passenger cars, vans, motorhomes, and boats with engine coolant capacities from 25 to 30 liters. It can also be utilized to build versatile full-stack heating solutions for water and interior heating.

RELIABLE & EFFICIENT

Highly Versatile
Highly Versatile

This heater can be utilized for all forms of heating in any vehicle type.

Quiet Operation
Quiet Operation

Equipped with a silent fuel pump, it works very quietly.

High Efficiency
High Efficiency

The heater consumes a maximum of 1.20 liters of diesel per hour.

Extended Warranty
Extended Warranty

If installed by certified AUTOTERM service, the warranty extends to 3 years or 2000 hours.


POWERFUL, YET STILL COMPACT!

EASY TO RETROFIT

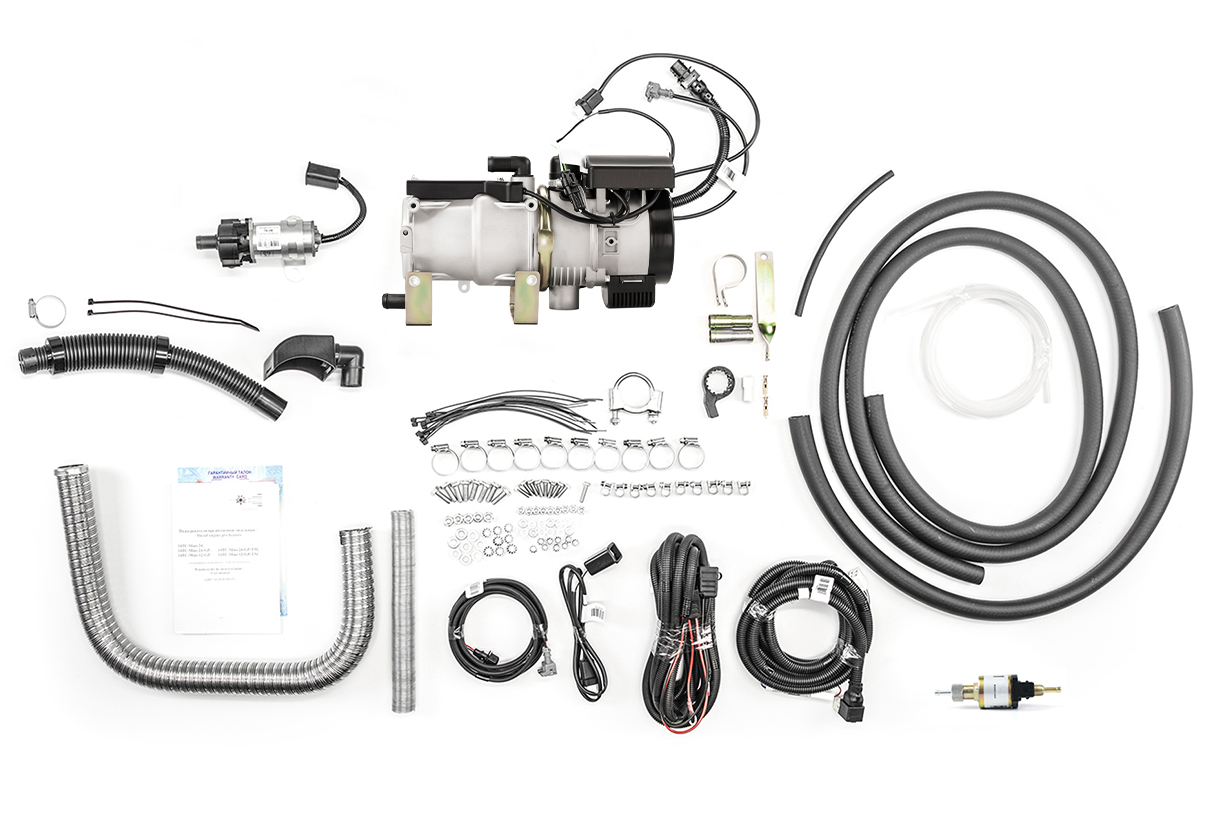

Each Flow 14D heater standard kit includes all essentials for both new and retrofitting installations.

THE STANDARD KIT INCLUDES:

  • Heat insulation (Assy. 909) - 1pce
  • Silent Fuel Pump (Assy. 4995) - 1pce
  • Clamp for Fuel Pump (Assy. AT5-0027-AF0 ) - 1pce
  • Cable Wiring (Assy. 4366) - 1pce
  • Cable Wiring (Assy. 4088) - 1pce
  • Air intake pipe with silencer (Assy. 1125 ) - 1pce
  • Exhaust Pipe (Assy. DE019) - 1m
  • Fuel Stand Pipe (Assy. 2063) - 1pce
  • Mounting bracket (Assy. 3219) - 1pce
  • Heat cover for exhaust pipe (Assy. P3636) - 1pce
  • Nylon fuel line (Assy. P1537) - 5.5m
  • Electric liquid pump Pierburg (Assy. 926) - 1pce
  • Electrical liquid pump (Assy. 2763) - 1pce
  • Coolant hose connector (Assy. P72) - 1pce
  • L-Shaped exhaust pipe adapter (Assy. P5198) - 1pce
  • Coolant hose (Assy. P3485) - 1pc
  • Rectangular silencer with mounting kit (Assy. 3944) - 1pce

COMPATIBLE WITH MULTIPLE CONTROL OPTIONS

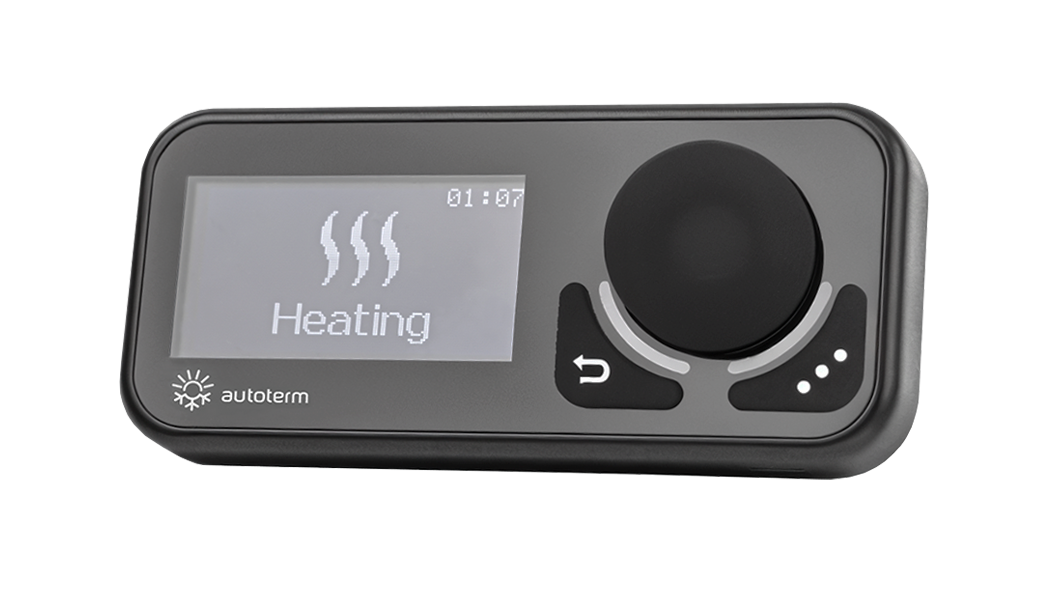

Comfort Control

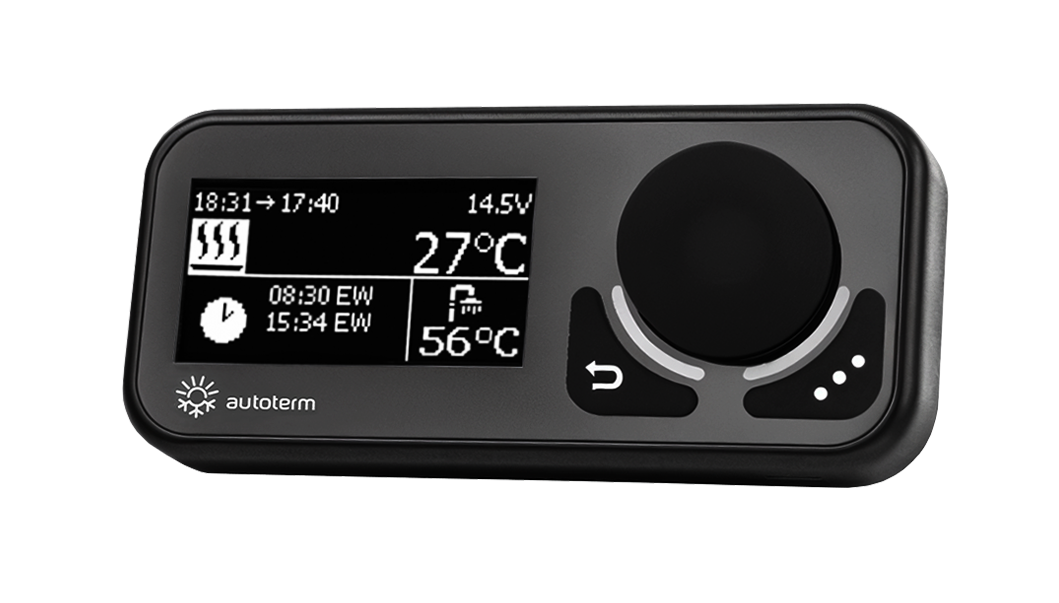

Comfort Boiler Control

Modem QSTART

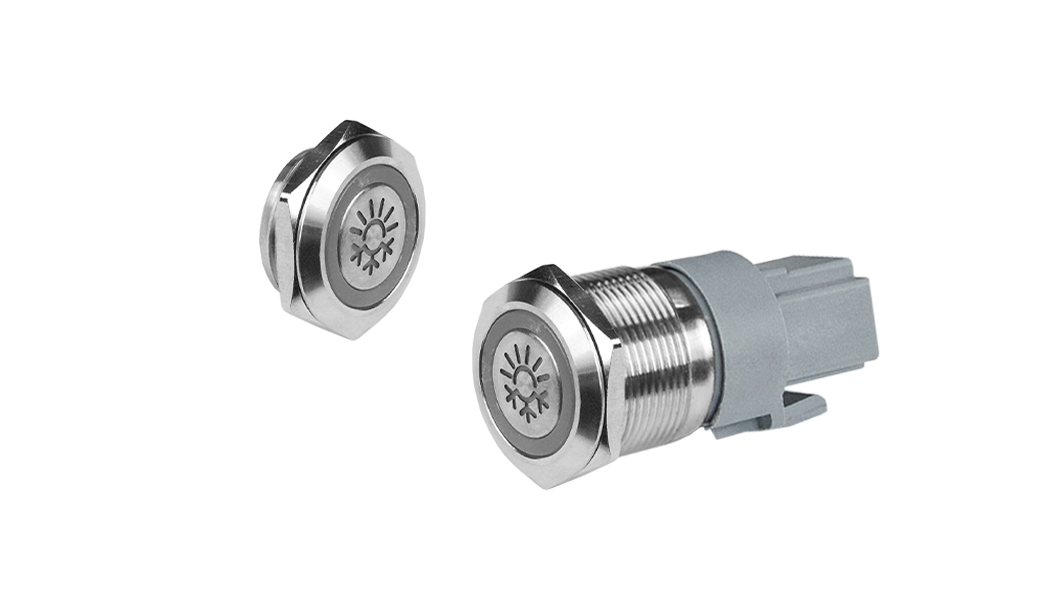

Push Control

MOST POPULAR APPLICATIONS

Off-Highway

For enhancing comfort, saving fuel prolonging the engine's lifetime.

Trucks

Saves fuel by preheating the engine before driving, as well as utilized for air heating.

Boats and Yachts

Commonly used for heating the engine and interior during the off-season for boats and small yachts.

Big Campervans and Motorhomes

Ideal for building full-stack solutions that heat water and air, as well as pre-heats the engine.

Speciality Vehicles

Keeps the vehicle's engine warm and ready to go any time, as well as heats the compartment.

CUSTOMIZED COMFORT WITH DIFFERENT WORKMODES

They may change depending on the used Control Panel!

PRE-HEATING MODE
PRE-HEATING MODE

The heater runs until the coolant reaches a set temperature, then shuts off the combustion. Once the coolant cools down, the heating starts again.

ECO MODE
ECO MODE

A pre-heating mode that uses less power and fuel, allowing the coolant to reach the desired temperature more gradually than in the standard mode.

Technical Specification

Voltage
12V24V
Heating medium
Coolant, antifreeze coolant
Optimal liquid/coolant volume
25 - 30 L
Coolant liquid flow rate at 0 bar pressure in the system
2000 l/h
Coolant liquid flow rate at 0.18 bar pressure in the system
1300 l/h
Heating power
14,5 kW
Power consumption
46 - 124 W (12V)46 - 113 W (24V)
Max. work altitude (MASL)
1000 m
Fuel
Diesel - EN590
Fuel consumption
0.70 l/h max0.5 - 1.2  l/h max
Coolant inlet / outlet diameter
OD - Ø 20 mmOD - Ø 20 mm
Noise level
80 dB
Control mode
Manual, standard remote control, modem
Compatible control panels
OLED Control panel, Comfort Control
Weight of the heater
5.7 kg
Weight of the set
16 kg
Heater dimensions
340x160x206 mm
Package dimensions
88x33x30 cm
