The heater's compact size allows for easy installation in even the tightest spaces.

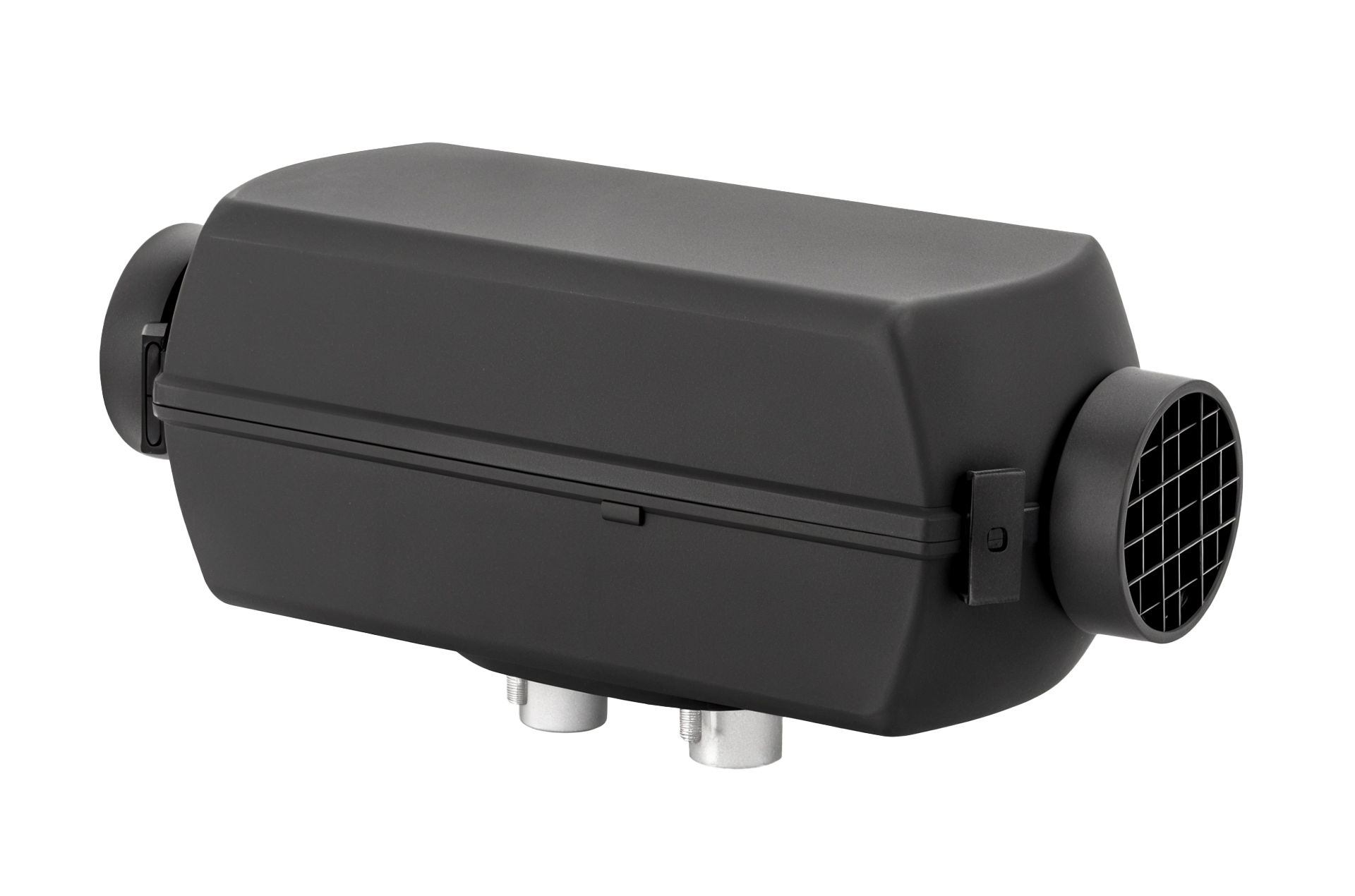

AUTOTERM Air 2D
The top choice for efficiently heating small compartments or interiors. Ideal for any type of vehicle, from van compartments to boat interiors!
-
R10 & R122 Certified
COMPACT, RELIABLE, EFFICIENT
High Altitude
This heater is equipped with a high altitude sensor which allows it to heat in altitude up to 4200m.
Quiet Operation
The heater operates very quietly due to its built-in brushless fan motor and quiet fuel pump.
High Efficiency
The heater consumes only 0.10 - 0.24 liters of diesel per hour, depending on set power.
Extended Warranty
If installed by certified AUTOTERM service, the warranty extends to 3 years or 2000 hours.
COMPACT SIZE
EASY TO RETROFIT

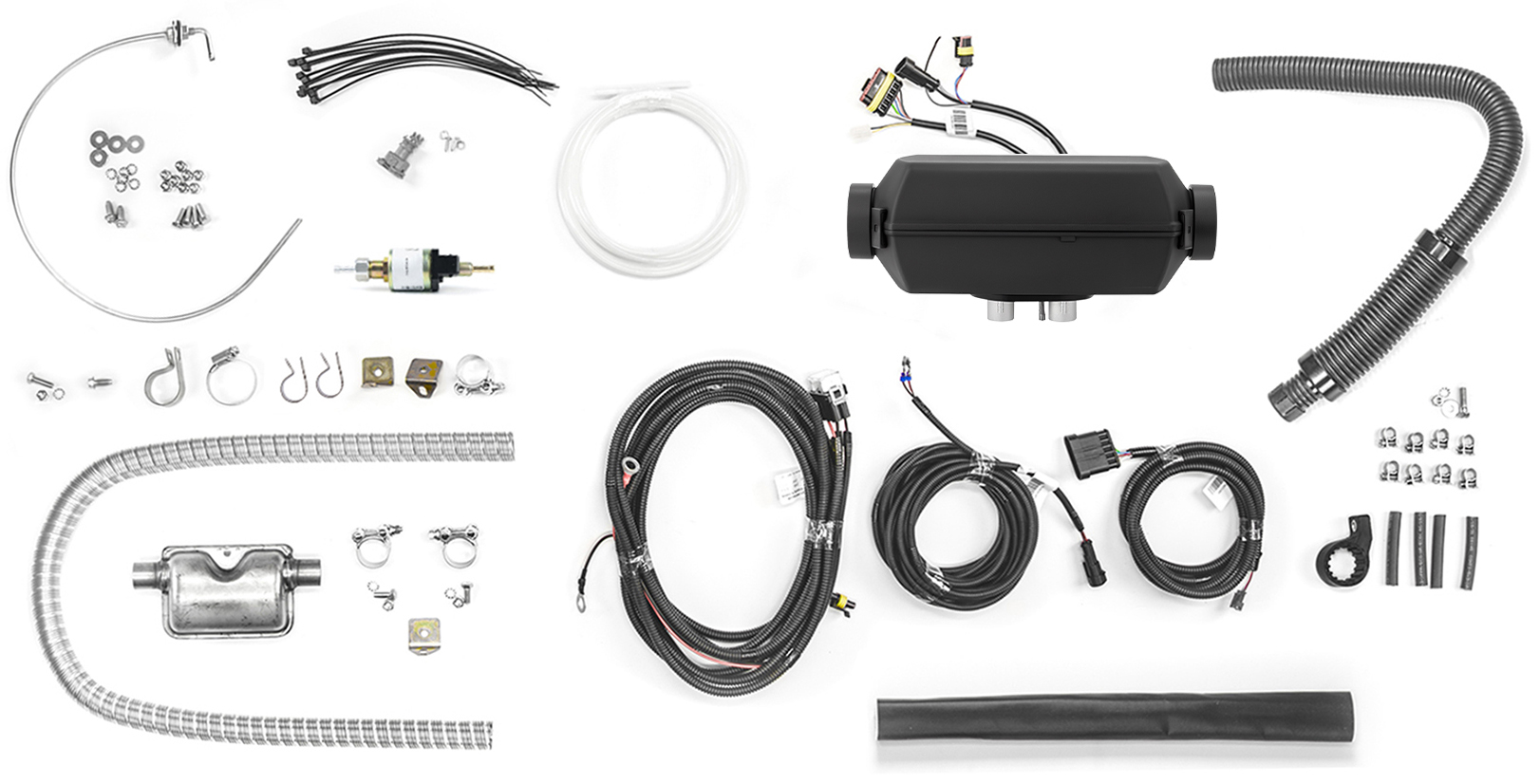

All AUTOTERM Air 2D heater standard kits include all essentials for both new and retrofitting installations.
THE STANDARD KIT INCLUDES:
- Fuel Pump Cable (Assy. 2061) - 1pce
- Power Supply Cable (Assy. 4007) - 1pce
- Power Supply Cable (Assy. 3647) - 1pce
- Air Intake Pipe Silences (Assy. 2552) - 1pce
- Clamp For Fuel Pump (Assy. AT5-0027-AF0) - 1pce
- Silent Fuel Pump (Assy. 4995) - 1pce
- Control Panel Wiring (Assy. 2067) - 1pce
- Fuel Stand Pipe (Assy. AT8-0010-AF0 ) - 1pce
- Exhaust Pipe Insulation (Assy. 909) - 1pce
- Silencer with Mounting Kit (Assy. 3944) - 1pce
- Exhaust Pipe (Assy. DE019) - 1m
- Nylon Fuel Line (Assy. P1537) - 5.5m
COMPATIBLE WITH MULTIPLE CONTROL OPTIONS

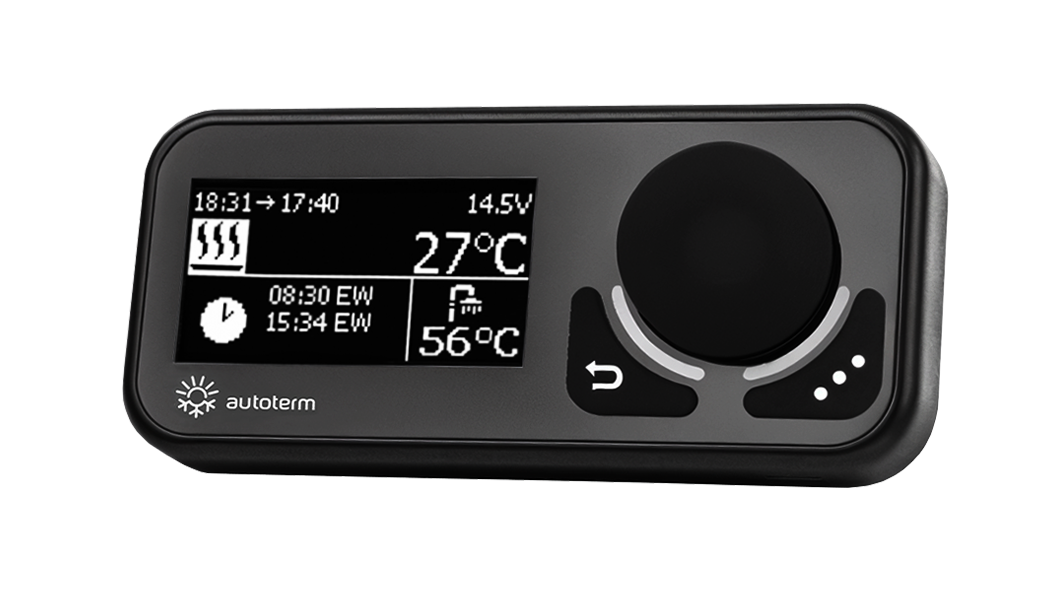

Comfort Control

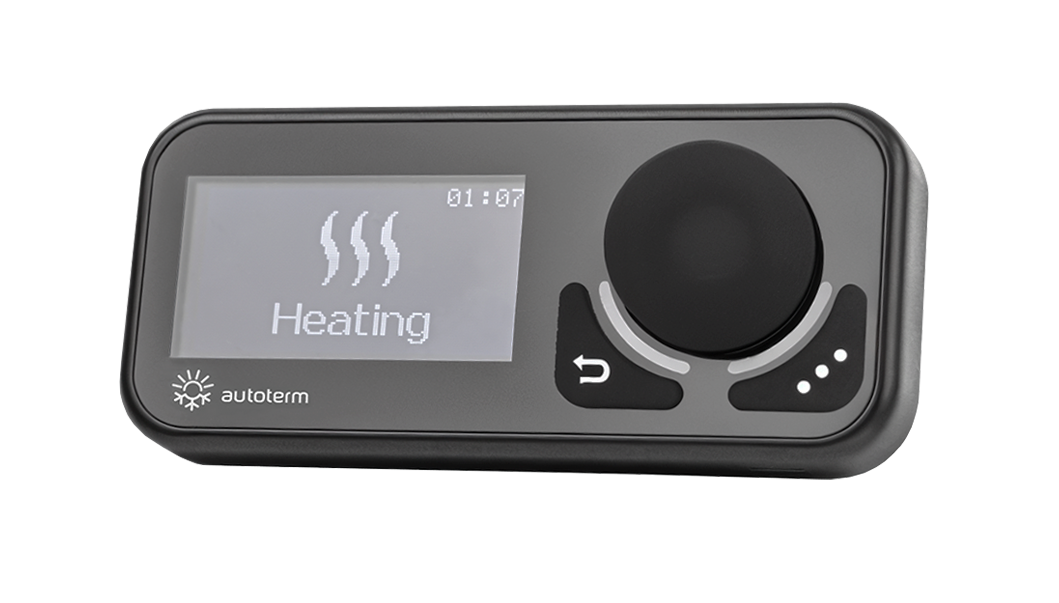

Comfort Boiler Control

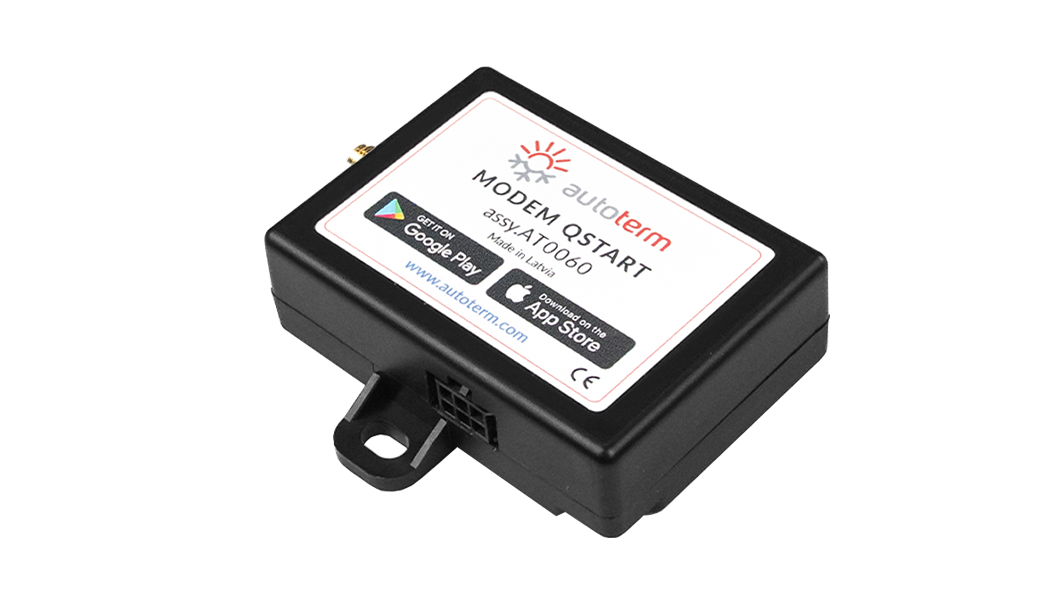

Modem QSTART

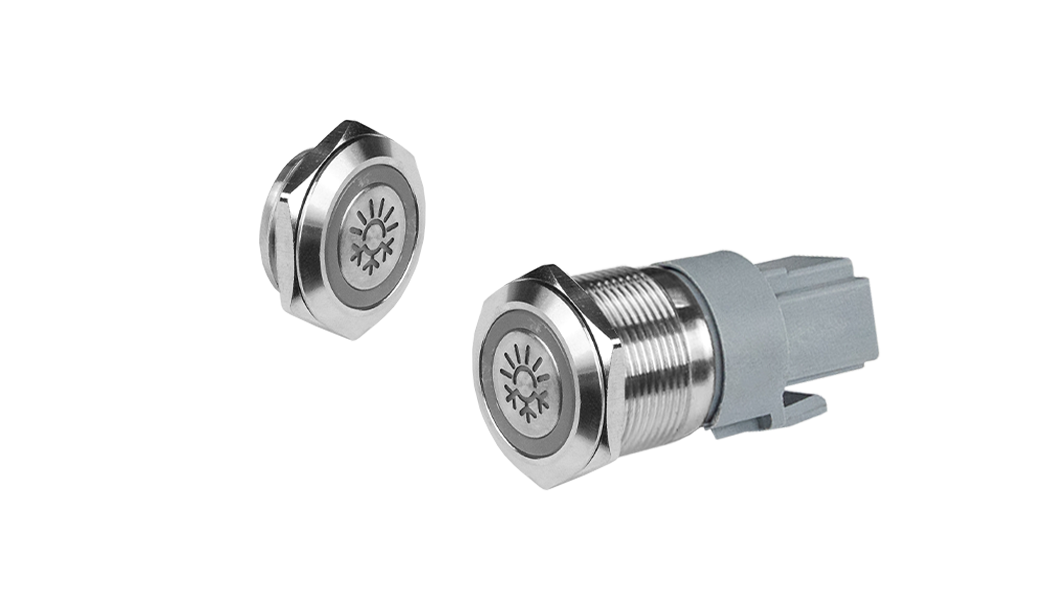

Push Control

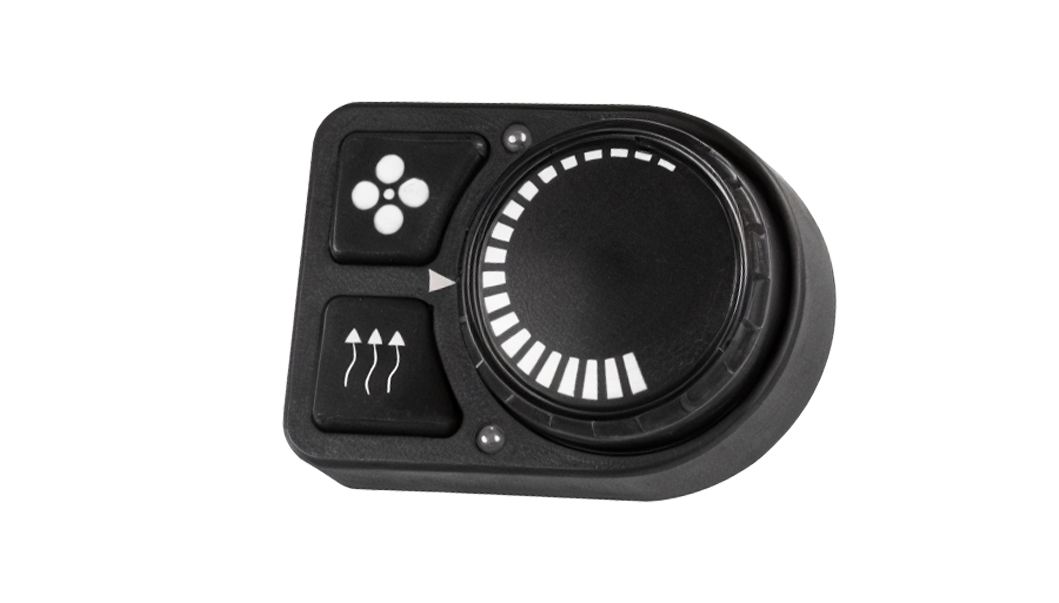

Simple Control
MOST POPULAR APPLICATIONS
Campervans
Widely used by travelers and outdoor enthusiasts to heat campervans.
Commercial Vans
Ideal for heating the compartment to prevent goods from freezing when the temperature gets low.
Off-Highway
For enhancing comfort in the work environment.
Boats and Yachts
Commonly used for heating the interior of boats and small yachts. (Max length of up to 33 feet/10 m long).
Trucks
It's perfect for heating truck cabins, so the driver can rest comfortably, without the need to run the engine to keep himself warm.
CUSTOMIZED COMFORT WITH DIFFERENT WORKMODES
They may change depending on the used Control Panel!
TEMPERATURE MODE
The heater will maintain a set temperature by reducing the heating power, without shutting off the combustion process.
POWER MODE
The heater will operate constantly at a set power level.
HEAT + VENTILATION
The heater runs until the temperature reaches 1°C above the set point, then shuts off and ventilates until it drops 5°C below before resuming to heat.
THERMOSTAT MODE
The heater runs until the set temperature is reached, then shuts off and restarts heating when temperature drops.
Why do travelers choose the Air 2D?
Maximize your Air heater's performance!
How to choose between 2kW and 4kW heaters?
Technical Specification
Power level |
| ||
Voltage |
| ||
Heating medium |
| ||
Heating power |
| ||
Heated air volume |
| ||
Power consumption |
| ||
Max. work altitude (MASL) |
| ||
Fuel |
| ||
Fuel consumption |
| ||
Control mode |
| ||
Compatible control panels |
| ||
Weight of the heater |
| ||
Weight of the set |
| ||
Heater dimensions |
| ||
Package dimensions |
|
