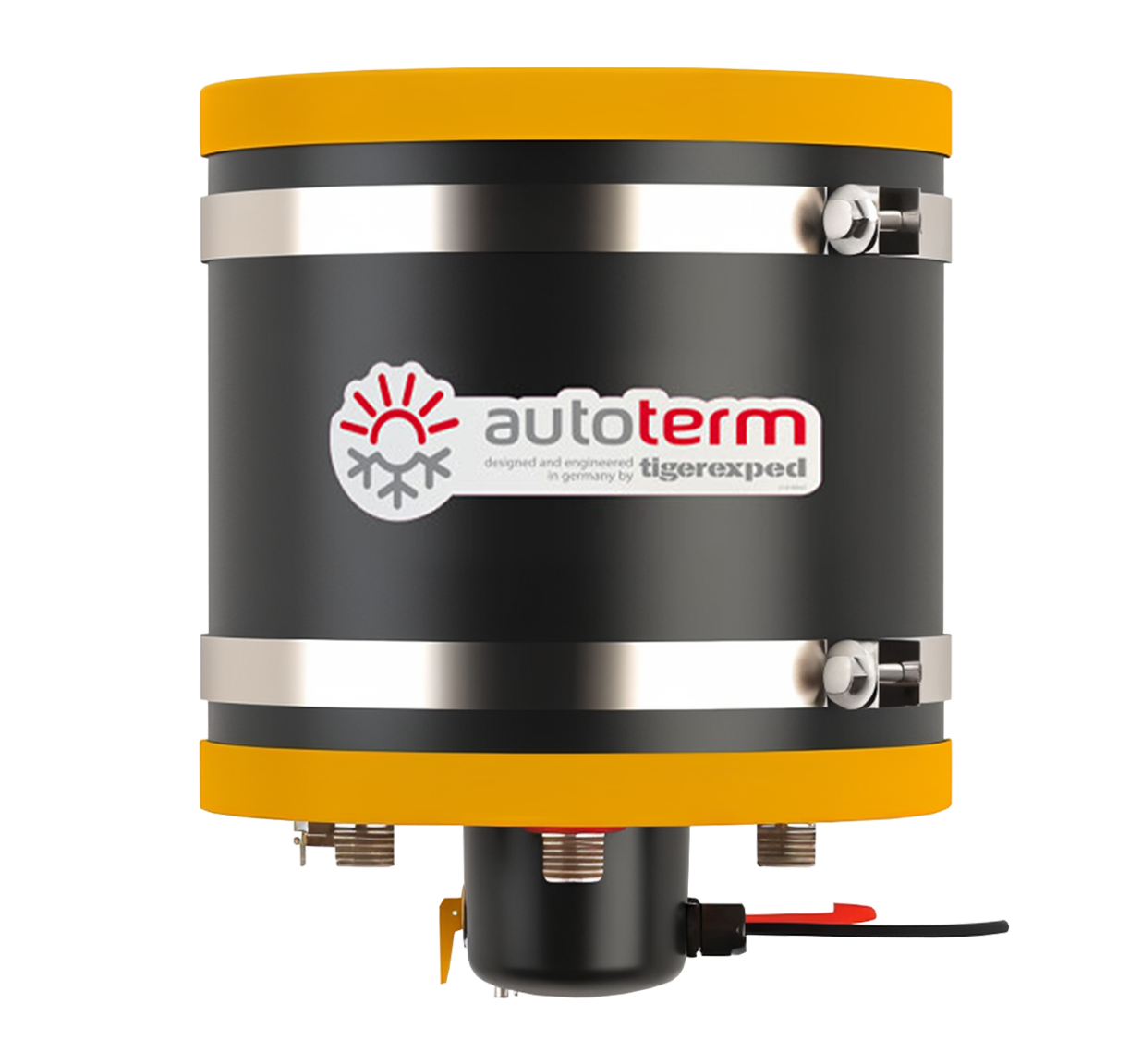

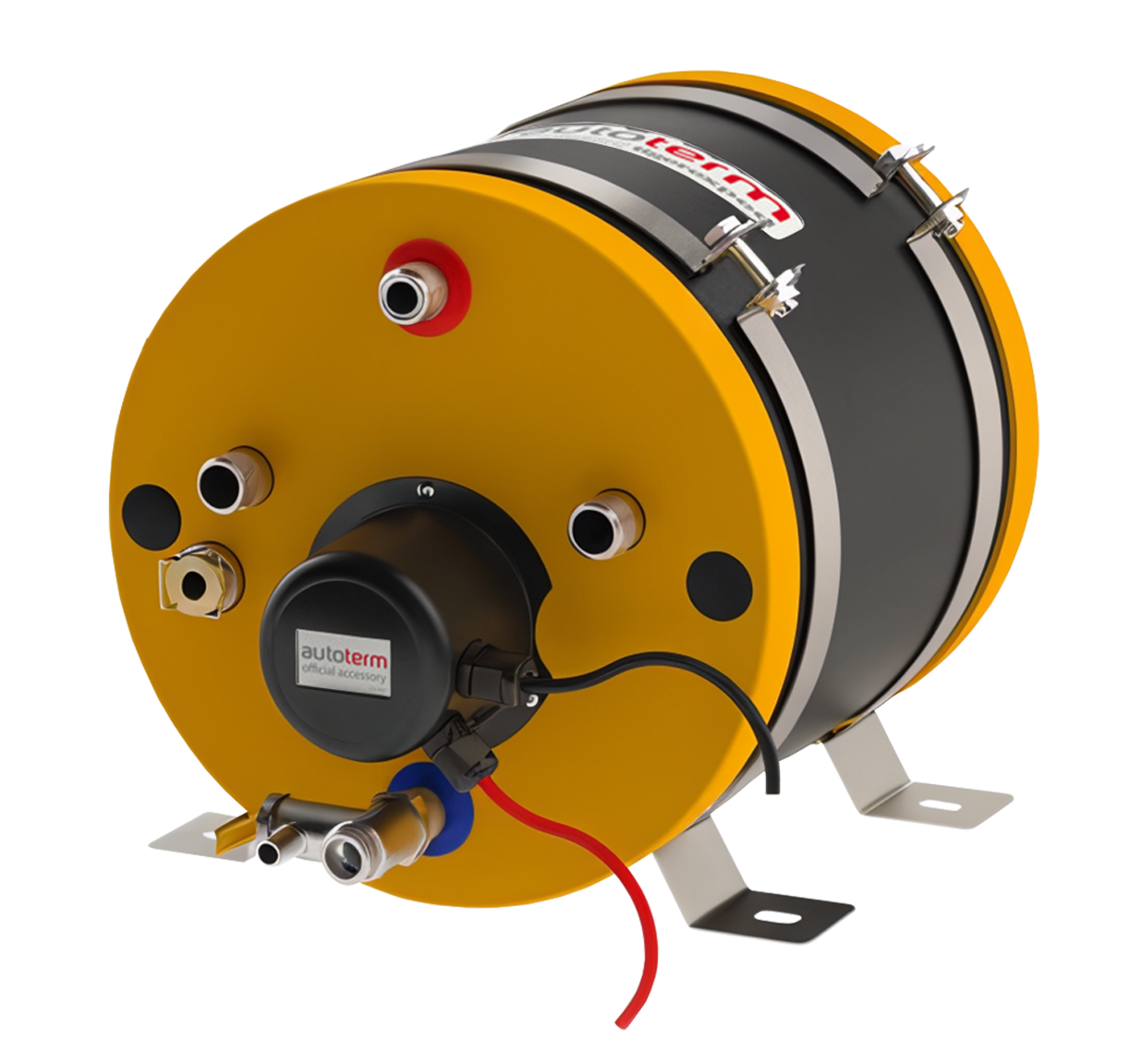

AUTOTERM duoBOIL
The AUTOTERM duoBOIL utilizes two independent heat sources - hot coolant and electric power - to ensure a reliable supply of domestic hot water, whether you're off-grid or connected to shore power.
Seamlessly compatible with AUTOTERM Flow Series heaters and can also be connected directly to the engine’s coolant loop to harness waste heat for warming water while driving or cruising.
LIQUID HEATERS OR ENGINES
Water is heated with the help of hot coolant running through the boiler.
ELECTRICITY
The water is heated by connecting the boiler to an electrical power source.
DURABLE AND ROBUST BUILD
The boiler features a durable, saltwater-resistant 316L stainless steel body with a shockproof, impact-resistant housing for maximum longevity.
Flexible Mounting
Flexible installation on the floor, wall, or sloped surfaces. Its cylindrical shape allows rotation within the two mounting clamps, ensuring a practical fit in any vehicle.
Frost Protection
When the water temperature drops to 2°C, the heater will automatically heat the water to +15°C and Air to +7°C, protecting the boiler from freezing.
Integrated Safety Valve
If the system pressure is too high, a safety valve opens and prevents damage or leaks to the boiler and water system in the vehicle.
Integrated Thermostat
Built-in in the 120/230V versions and as an external module (TSR, included) in the 12/24V versions.
Minimized Heat Loss
Closed-cell polyurethane foam insulation for minimized heat loss.
Overheat Protection
Turns off the heating when the water temperature reaches 78°C.
DC & AC Applications
The combiBOIL is compatible with 12V or 24V DC systems and can also run on 230V or 120V via an inverter or shore power.
AUTOTERM Integration
Fully compatible with all AUTOTERM Flow Series heaters.
9-LITER MODEL IS AVAILABLE!
Customized to fit seamlessly into space-conscious installations, the AUTOTERM duoBOIL 9L offers heating and storage to 9 liters of hot water, which is usually enough for three adults to take consecutive showers.
-
Available in two power configurations - 12V 300W & 230V 500W -

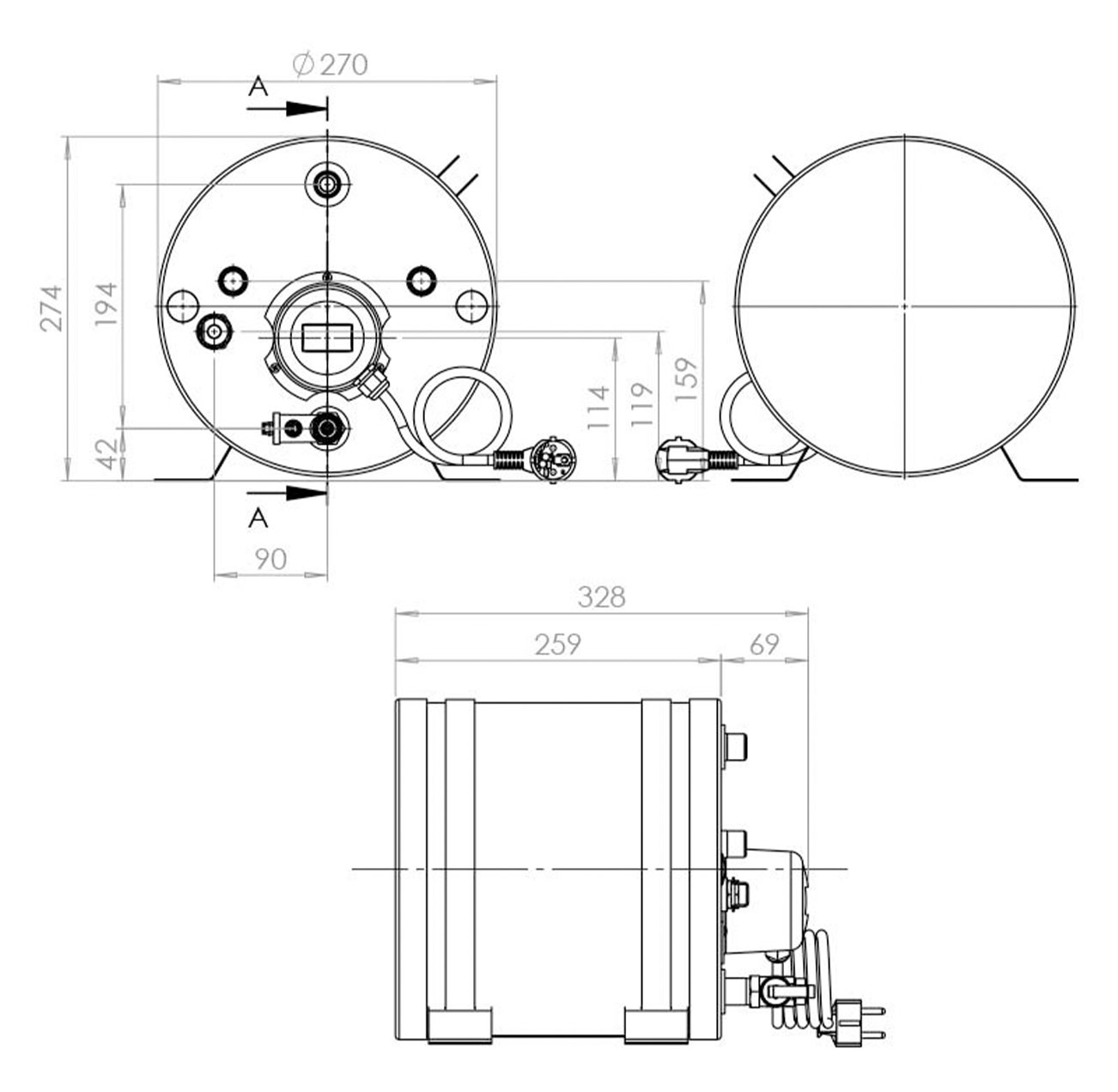

Dimensions - 328×270×274mm -
All versions come with an additional Thermostat Module for overheating protection.
RECIEVE HIGH EFFICIENCY IN A COMPACT DESIGN!
The AUTOTERM duoBOIL is compact, yet when mixed with cold water, it delivers up to ~21 liters of warm water before needing to reheat.
INSTALL WITH LIQUID HEATERS & ENGINE COOLANT SYSTEMS
- AUTOTERM Boiler Control panel
- AUTOTERM Air Series heater
- Hot air
- AUTOTERM combiBOIL
- Pressure valve
- Water pump + accumulator tank
- Water tank
- Coolant pump
- Hot floor
- Thermostatic mixing valve
- Domestic water system
POWER PURELY BY ELECTRICITY
- Electrical heating core
- AUTOTERM combiBOIL
- Pressure valve
- Water pump + accumulator tank
- Water tank
- Thermostatic mixing valve
- Domestic water system
RECOMMENDATIONS FOR THE SMOOTHEST USER EXPERIENCE
DOMESTIC WATER KIT
A domestic water heating kit to make the combiBOIL installation as easy and efficient as possible.
It includes - Pressure tank (1pce); Inlet filter (1pce); 1/2'' to 10mm connectors (3pcs); Hose T-pieces 10x10x10 (2pcs); Hose connector 10mm (1pce); Spring clamps 15,7-16.5mm (18pcs); Male brass hose adapters 1/2' to 10mm (5pcs).
WATER PUMP
Ensures water circulation. If you already have a pressure water pump in your vehicle, you don’t need to replace it to use with the boiler system.
PRESSURE VALVE
Eliminates risks of an overpressurized domestic water system, that could cause leaks.
THERMOSTATIC MIXING VALVE
Mixes hot and cold water to ensure optimal temperature and extend the warm water volume.
CONTROL HEATER AND BOILER FROM ONE PANEL!
The AUTOTERM duoBOIL is controlled with the Comfort Boiler Control panel - an enhanced version of the Comfort Control panel, which is designed to seamlessly manage all AUTOTERM boilers and heaters.
Technical Specification
Voltage/Power |
| ||
Number of persons that can take consecutive showers |
| ||
Maximum pressure |
| ||
Time to heat water from 20°C to 60°C |
| ||
Compatible heaters |
| ||
Compatible control panels |
| ||
Boiler dimensions |
| ||
Body |
|
