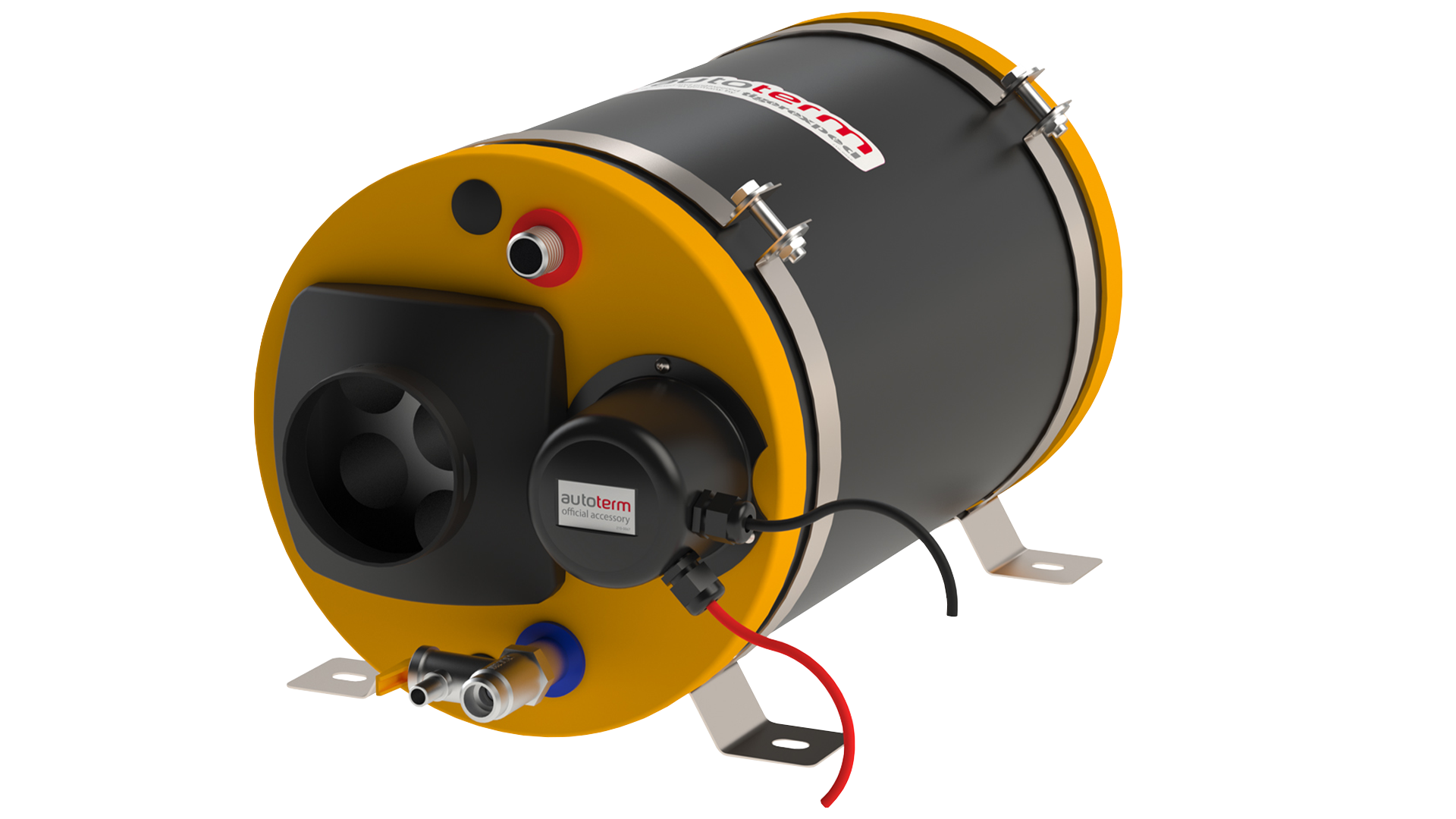

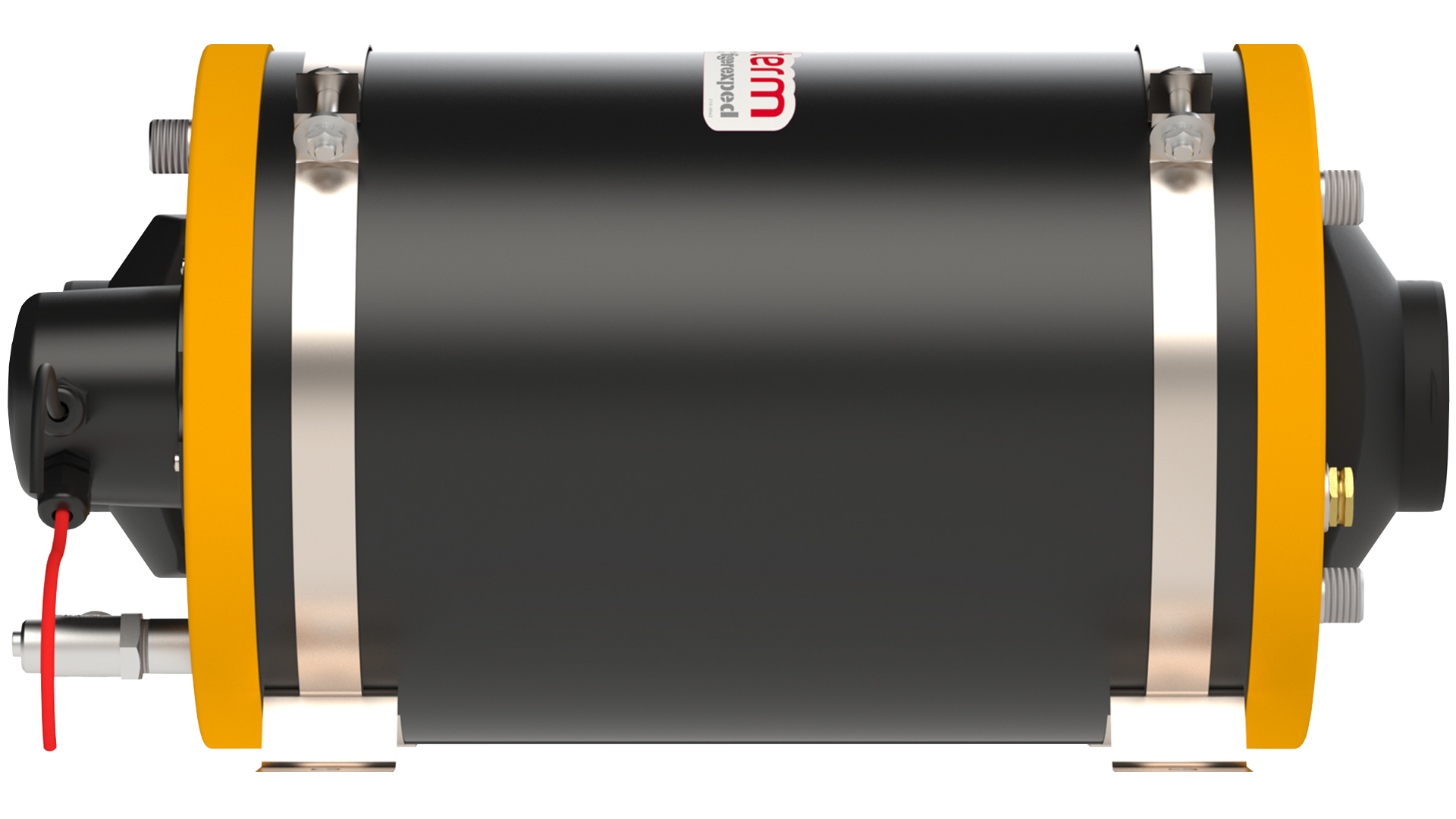

AUTOTERM combiBOIL 12L

High-performance hot water boiler with three versatile heating options - Air Heaters, Flow Heaters, and Electricity. Designed for durability, its saltwater-resistant 316L stainless steel body ensures reliable, long-lasting performance in any environment.

Available power variations - 12V 300W | 24V 600W | 120V 500W | 230V 500W

MAXIMUM CAPACITY FOR ULTIMATE COMFORT

The 12-liter model delivers the highest hot water capacity between combiBOIL models, making it perfect for larger RVs, boats, and off-grid setups. Despite its increased volume, it remains efficient and seamlessly integrates with any AUTOTERM system or operates independently on electricity, ensuring maximum comfort without compromise.

Mixed with cold water, 12-liters is usually enough for three adults to take consecutive showers.

Flexible Mounting

Flexible installation on the floor, wall, or sloped surfaces. Its cylindrical shape allows rotation within the two mounting clamps, ensuring a practical fit in any vehicle.

Frost Protection

When the water temperature drops to 2°C, the heater will automatically heat the water to +15°C and Air to +7°C, protecting the boiler from freezing.

Integrated Safety Valve

If the system pressure is too high, a safety valve opens and prevents damage or leaks to the boiler and water system in the vehicle.

Integrated Thermostat

Built-in in the 120/230V versions and as an external module (TSR, included) in the 12/24V versions.

Minimized Heat Loss

Closed-cell polyurethane foam insulation for minimized heat loss.

Overheat Protection

Turns off the heating when the water temperature reaches 78°C.

DC & AC Applications

The combiBOIL is compatible with 12V or 24V DC systems and can also run on 230V or 120V via an inverter or shore power.

AUTOTERM Integration

Fully compatible with all AUTOTERM Air and Flow Series heaters.

EXTENSIVE COMPABILITY!

These boilers are ideal both for new installations and upgrading existing systems.

With Air Heaters

Water heats as hot air passes through the boiler.

With Flow Heaters

Water heats as hot coolant circulates through the boiler.

Works Independently

This can boiler operate independently, using electricity.

FULL CONTROL WITH A SINGLE PANEL!

The AUTOTERM combiBOIL is controlled with the Comfort Boiler Control panel - an enhanced version of the Comfort Control panel. It's designed to seamlessly manage both combiBOIL boilers and AUTOTERM heaters.

Learn more

INSTALLATION EXAMPLE WITH AIR HEATERS

AUTOTERM Boiler Control panel
AUTOTERM Air Series heater
Hot air
AUTOTERM combiBOIL
Pressure valve
Water pump + accumulator tank
Water tank
Coolant pump
Hot floor
Thermostatic mixing valve
Domestic water system

INSTALLATION EXAMPLE WITH FLOW HEATERS & ENGINE COOLANT SYSTEMS

AUTOTERM Boiler Control panel
AUTOTERM Air Series heater
Hot air
AUTOTERM combiBOIL
Pressure valve
Water pump + accumulator tank
Water tank
Coolant pump
Hot floor
Thermostatic mixing valve
Domestic water system

POWERED PURELY ON ELECTRICITY

Electrical heating core
AUTOTERM combiBOIL
Pressure valve
Water pump + accumulator tank
Water tank
Thermostatic mixing valve
Domestic water system

RECOMMENDATIONS FOR THE SMOOTHEST USER EXPERIENCE

DOMESTIC WATER KIT

A domestic water heating kit to make the combiBOIL installation as easy and efficient as possible.

It includes - Pressure tank (1pce); Inlet filter (1pce); 1/2'' to 10mm connectors (3pcs); Hose T-pieces 10x10x10 (2pcs); Hose connector 10mm (1pce); Spring clamps 15,7-16.5mm (18pcs); Male brass hose adapters 1/2' to 10mm (5pcs).
