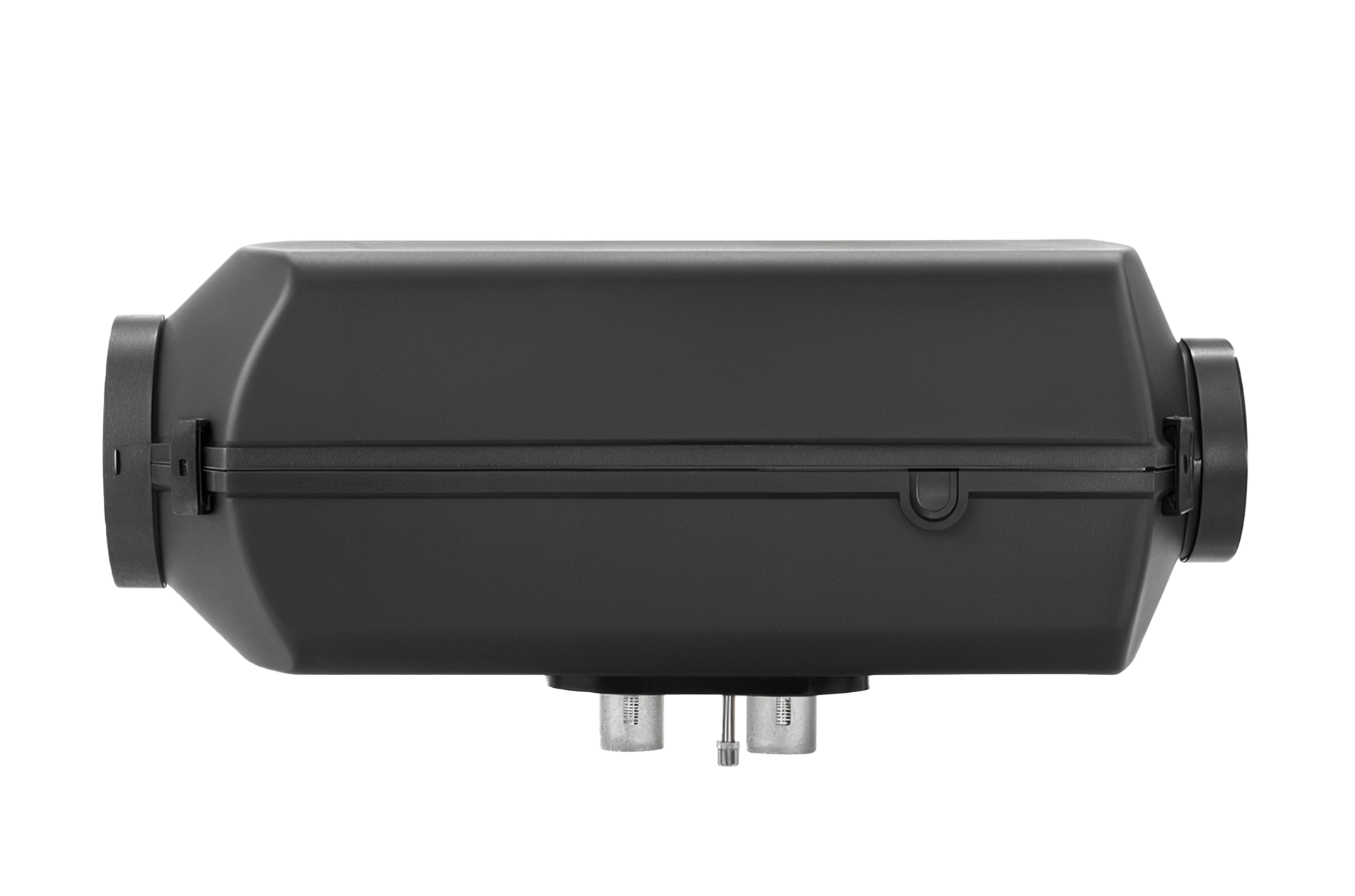

The heater's compact size allows for easy installation in tight compartments.
AUTOTERM Air 4D Marine Accessories Sets
These enhanced sets for the AUTOTERM Air 4D heater come with a complete installation kit and essential marine accessories, ensuring a seamless and efficient setup. Designed for convenience, it simplifies the installation process, saving time while delivering a professional, high-quality finish for marine applications.
-
Best suited for Boats & Yachts up to 48 feet /15 m long -
Works on Diesel Fuel -
Available in 12/24V Versions -
R10 & R122 Certified
SMOOTH SAILING & LONG-TERM LIVING!
The 4kW heater ensures consistent warmth for boats and yachts up to 15 m (48 feet) in length, keeping the cabin cozy in any weather. It's suitable for both short trips and long-term living.
FROST & MOLD PROTECTION DURING STORAGE
Keep your boat protected from frost and mold by maintaining a dry, well-heated cabin, ensuring it's ready to go when the season starts again.
Quiet Operation
The heater operates very quietly due to its built-in brushless fan motor and quiet fuel pump.
Extendeds The Season
Ensures a warm and dry cabin to enjoy maritime adventures regardless of cold or humid weather conditions.
High Efficiency
The heater consumes only 0.42 - 1.00 liters of diesel per hour, depending on set power.
Extended Warranty
If installed by certified AUTOTERM service, the warranty extends to 3 years or 2000 hours.
CHOOSE THE OPTIMAL SET FOR YOUR PROJECT!

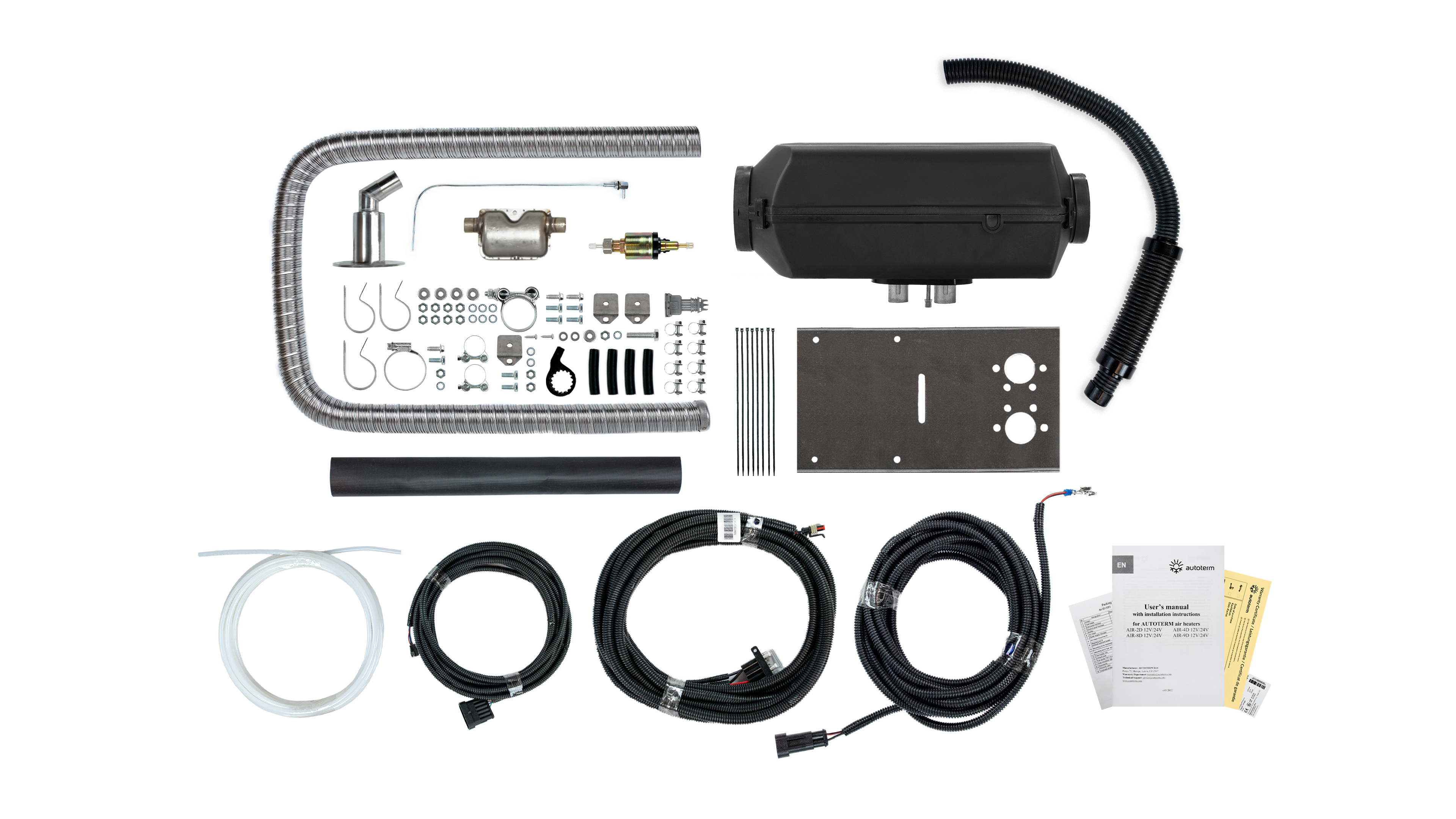

AUTOTERM Air 4D Small Marine Set
- AUTOTERM Air 4D Standard Kit
- Bendable Mounting Bracket (Assy. AT0001) - 1 pce
- Exhaust Adapter (Assy: AT0003) - 1 pce

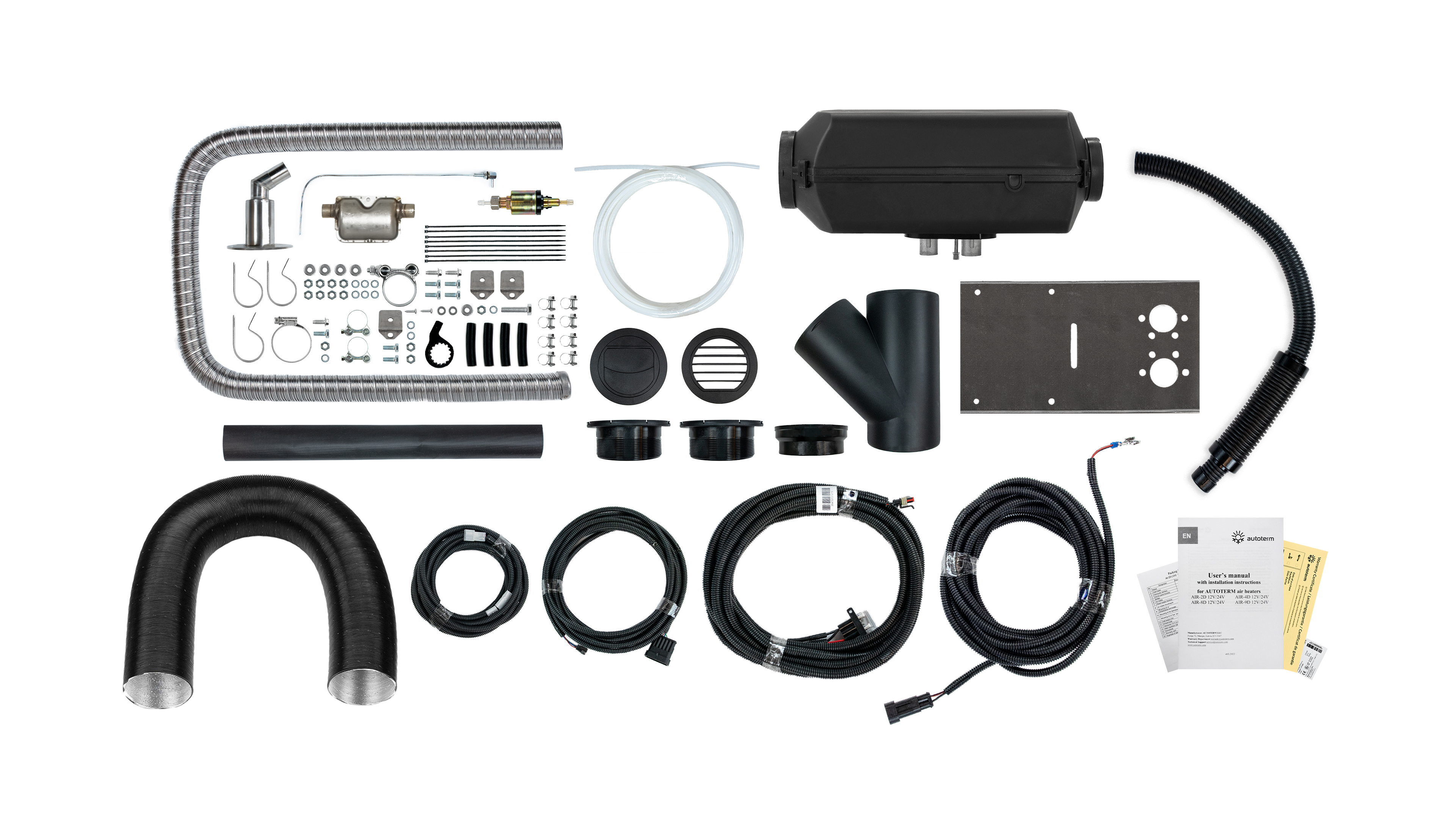

AUTOTERM Air 4D Medium Marine Set
- AUTOTERM Air 4D Standard Kit
- Bendable Mounting Bracket (Assy. AT0001) - 1 pce
- Exhaust Adapter (Assy: AT0003) - 1 pce
- Grille (Assy: P4944) - 1 pce
- Air Ducting Pipe (Assy: DE015) - 2 m
- Closable Deflector (Assy: 4108) - 1 pce
- Flange (Assy: P4942) - 2pcs
- Y-shape Adapter (Assy: P5009) - 1 pce
- External Temperature Sensor (Assy: 1458 ) - 1 pce
- Air 4D Outlet Adapter (Assy: ATR2-A9690-BK) - 1pce
- Air 4D inlet adapter (Assy: ATR2-A80903D-BK ) - 1 pce
AUTOTERM Air 2D Large Marine Set
- AUTOTERM Air 4D Standard Kit
- Bendable Mounting Bracket (Assy. AT0001) - 1 pce
- Exhaust Adapter (Assy: AT0003) - 1 pce
- Grille (Assy: P4944) - 1 pce
- Air Ducting Pipe (Assy: DE015) - 2 m
- Closable Deflector (Assy: 4108) - 1 pce
- Flange (Assy: P4942) - 2pcs
- Y-shape Adapter (Assy: P5009) - 1 pce
- External Temperature Sensor (Assy: 1458) - 1 pce
- Air 4D Outlet Adapter (Assy: ATR2-A9690-BK) - 1pce
- Air 4D inlet adapter (Assy: ATR2-A80903D-BK) - 1 pce
- Air Pipe Connector (Assy: P5003) - 1 pce
- T-Shape Adapter (Assy: P5007) - 1 pce
- Control Panel Wiring (Assy: 3298) - 1 pce
- Air Intake Adapter (Assy: AT0006) - 1 pce
4kW POWER IN A COMPACT DESIGN
CUSTOMIZABLE WORKMODES FOR ALL USE CASES
Pay attention that the workmodes may change depending on the used Control Panel!
TEMPERATURE MODE
The heater will maintain a set temperature by reducing the heating power, without shutting off the combustion process.
POWER MODE
The heater will operate constantly at a set power level.
HEAT + VENTILATION
The heater runs until the temperature reaches 1°C above the set point, then shuts off and ventilates until it drops 5°C below before resuming to heat.
THERMOSTAT MODE
The heater runs until the set temperature is reached, then shuts off and restarts heating when temperature drops.
Technical Specification
Power level |
| ||
Voltage |
| ||
Heating medium |
| ||
Heating power |
| ||
Heated air volume |
| ||
Power consumption |
| ||
Fuel |
| ||
Fuel consumption |
| ||
Max. work altitude (MASL) | 1600 m (standard control unit - old heater versions) / 4200 m (High altitude control unit) | ||
Control mode |
| ||
Compatible control panels |
| ||
Weight of the heater |
| ||
Weight of the set |
| ||
Heater dimensions |
| ||
Package dimensions |
|
